1HP LEESON 1800RPM 143TC EPFC 3PH MOTOR 121919

Catalog Number:  121919.00
Description:  1HP,1800RPM,143TC,EPFC,3PH,60HZ
Ship Weight:  48 lbs.

LEESON Three Phase Explosion Proof For Hazardous Locations Electric Motors: These explosion-proof motors are designed and approved for application in hazardous environments having certain explosive gases or materials present. Features Include:

  • This motor is inverter-rated with 10:1 ratio and suitable for use with an inverter.
  • Rugged mechanical construction meeting all requirements for safety. UL and CSA listed.
  • Double shielded, pre-lubricated ball bearings are standard. All motors have inherent automatic overload protection. NEMA 1.0 Service Factor except as noted.
  • Explosion-proof conduit box included at no extra cost.
  • Division I areas are environments where a hazard is present continuously or would be subject to fire or explosion if the hazard was present as a result of an accident or uncommon occurrence. Division II areas are environments where the threat of fire or explosion is not normally present and not likely to result in the event of an abnormal occurrence.

MOTOR RATING:  (Click on Files for LEESON's Hazardous Ratings Chart)

  • DIVISION I, CLASS I, GROUPS C&D
  • DIVISION II, CLASS II, GROUPS F&G - WITH CONDUIT BOX
  • NO LEESON motors are listed for Class I, Group A or B
Volts 208-230 Volts 460 Volts
F.L. Amps 3.3-3.3 F.L. Amps 1.65 F.L. Amps
S. F Amps   S. F Amps   S. F Amps
RPM 1800 Hertz 60
HP 1 Duty CONTINUOUS TYPE TX
KW 0.75 Model # C143T17XK3B
Frame 143TC Serv. Factor 1.0 Phase 3
Max Amb 40 Design B Code P
Insul Class F Protection NOT Therm.Prot.
Eff 100% 85.5 Eff 75%   PF 68
UL NONE-OVER HEAT PROT DEVICE CSA No Bearing OPE 6203
CC Number   CE No Bearing PE 6205
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 48 LB Enclosure EPFC Lubrication STANDARD
Nameplate   Mounting RIGID Rotation REV

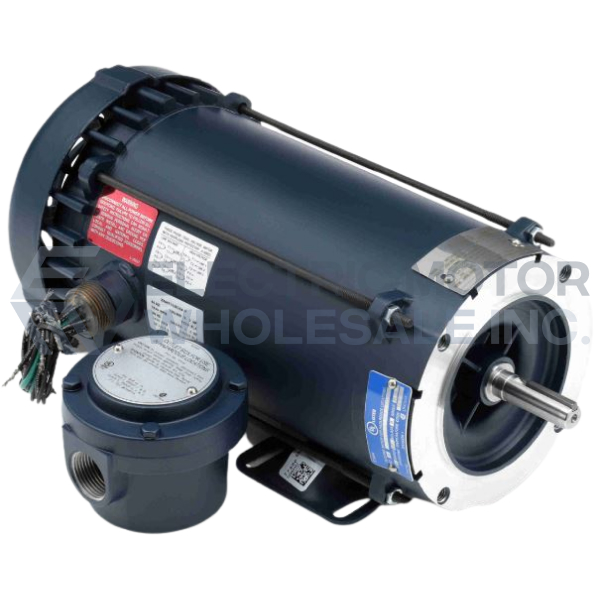

1HP LEESON 1800RPM 143TC EPFC 3PH MOTOR 121919
Click Image to Enlarge
Manufacturer Part Number: 121919.00
Stock # 121919
Price: $617.00
Compare At: $1,557.00
