3HP LEESON 3600RPM 145T EPFC 3PH MOTOR 121918.00

Catalog Number:  121918.00
Model Number:  U14T34XB26
Description:  3HP,3600RPM,145T,EPFC,3PH,60HZ
Ship Weight:  56 lbs.



LEESON Three Phase Explosion Proof For Hazardous Locations Electric Motors: These explosion-proof motors are designed and approved for application in hazardous environments having certain explosive gases or materials present. Features Include:

  • Made in USA
  • 7/8" shaft output diameter
  • Rugged mechanical construction meeting all requirements for safety. UL and CSA listed.
  • Double shielded, pre-lubricated ball bearings are standard. All motors have inherent automatic overload protection. NEMA 1.0 Service Factor except as noted.
  • Explosion-proof conduit box included at no extra cost.
  • Division I areas are environments where a hazard is present continuously or would be subject to fire or explosion if the hazard was present as a result of an accident or uncommon occurrence. Division II areas are environments where the threat of fire or explosion is not normally present and not likely to result in the event of an abnormal occurrence.
  • Except as noted, steel rame explosion-proof motors are NOT inverter-rated and must not be used with an inverter

MOTOR RATING:  (Click on Files for LEESON's Hazardous Ratings Chart)

  • DIVISION I, CLASS I, GROUPS C&D
  • DIVISION II, CLASS II, GROUPS F&G - WITH CONDUIT BOX
  • NO LEESON motors are listed for Class I, Group A or B
Volts 230   Volts 460   Volts 190/380
FL Amps 7.6   FL Amps 3.8   FL Amps 6.4/3.2
SF Amps 7.6   SF Amps 3.8   SF Amps 6.4/3.2
RPM 3600   Hertz 60/50
HP 3   Duty CONTINUOUS   Type TX
KW 2.24   SF 1.0   Phase 3
Frame 145T   Design A   KVA Code M
Ambient 40   Protection NOT   Therm.Prot.
Insulation Class B   Eff(75%)     PF 84
Eff(100%) 87.5   CSA N   Bearing OPE 6203
UL NONE-OVER HEAT PROT DEVICE   CE N   Bearing PE 6205
CC Number CC005A   Inverter Type     Speed Range NONE
LOad Type
Motor Wt. 56 LB   Enclosure EPFC   Lubrication POLYREX EM
Nameplate A-92340   Mounting RIGID   Rotation REV
Shaft Diam.     Cust Part No.     Packaging F
      Winding ZT2175   Carton Label INDIVIDUAL
      Group 1   Iris
Paint BLUE - LEESON (ENAMEL)   Hazardous Location EXP PROOF CL I GR C&D CL II GR F&G T3C   Test Card 00

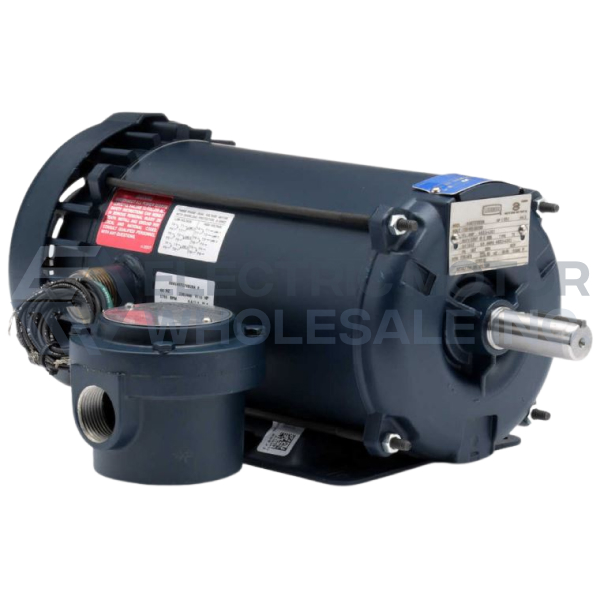

3HP LEESON 3600RPM 145T EPFC 3PH MOTOR 121918.00
Click Image to Enlarge
Manufacturer Part Number: 121918.00
Stock # 121918
