1.5HP LEESON 3600RPM 143T EPFC 3PH MOTOR 121914.00

Catalog Number:  121914.00 - FREE Ground Shipping in USA
Model Number:  A143T34XB25
Description:  1.5HP,3600RPM,143T,EPFC,3PH,60HZ
Ship Weight:  49 lbs.

LEESON Three Phase Explosion Proof Motor is designed and approved for applications in hazardous environments having certain explosive gases or materials present.

FEATURES:

  • Made in USA
  • This motor is NOT inverter rated
  • Explosion proof motors must be properly nameplated with inverter duty information prior to use on VFD. Motors with automatic overload protectors cannot be used on VFDs.
  • NEMA Premium efficiency rating with a three year warranty
  • 7/8" Keyed output shaft
  • Durable rolled steel frame
  • Meets all UL and CSA safety requirements
  • Double shielded ball bearings
  • Automatic overload protection
  • NEMA 1.0 Service Factor
  • Explosion-proof conduit box included

MOTOR RATING:  (Click on Files for LEESON's Hazardous Ratings Chart)

  • DIVISION I, DIVISION II: CLASS I, GROUPS C&D; CLASS II, GROUPS F&G;
  • MEETS TEMPERATURE CODE T3B
  • NO LEESON motors are listed for Class I, Group A or B
  • Division I areas are environments where a hazard is present continuously or would be subject to fire or explosion if the hazard was present as a result of an accident or uncommon occurrence.
  • Division II areas are environments where the threat of fire or explosion is not normally present and not likely to result in the event of an abnormal occurrence.
Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 4.2-4 F.L. Amps 2 F.L. Amps 3.4/1.7
S. F Amps   S. F Amps   S. F Amps
RPM 3600 Hertz 60/50
HP 1 1/2 Duty CONTINUOUS TYPE TX
KW 1.12 Model # A143T34XB25A
Frame 143T Serv. Factor 1.0 Phase 3
Max Amb 40 Design B Code M
Insul Class B Protection AUTOMATIC Therm.Prot. MWJ55KL
Eff 100% 84 Eff 75%   PF 83.5
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 203
CC Number CC005A CE No Bearing PE 205
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 49 LB Enclosure EPFC Lubrication POLYREX EM
Nameplate   Mounting RIGID Rotation REV

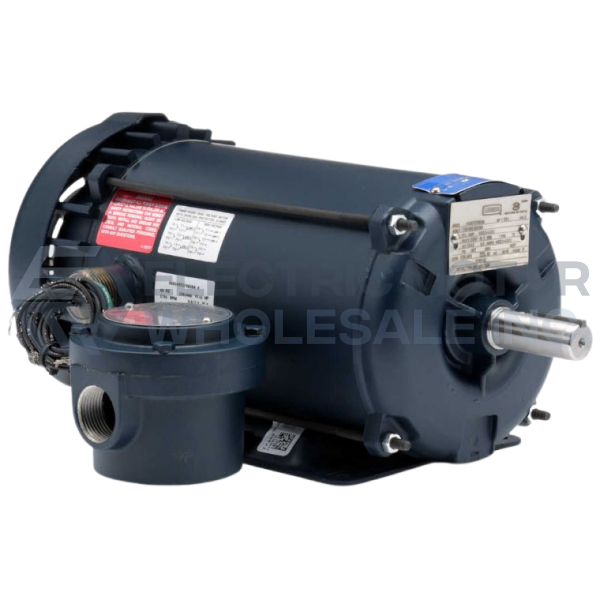

1.5HP LEESON 3600RPM 143T EPFC 3PH MOTOR 121914.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 121914.00
Stock # 121914
Price: $584.00
Compare At: $1,473.00
