1.5HP LEESON 1750RPM 145TC TEFC 3PH WG MOTOR 121912

Catalog Number: 121912.00
Model Number: CZ145T14KW40
Description:  1.5HP,1750RPM,145TC,TEFC,3PH,60HZ,PREM WASHGUARD
Ship Weight: 45 lbs.

APPLICATIONS: Typical applications include food processing areas requiring frequent sanitation procedures using high pressure cleaning with concentrated caustic solutions, areas of high humidity and in chemical environments.

FEATURES:

  • Made in USA
  • Premium efficient
  • TEFC enclosure, C-Face with Base
  • Paint free exterior
  • BISSC certified for the Baking Industry
  • Stainless Steel Output shafts
  • Repositional drain plugs for all angle mounting
  • Double Sealed bearings
  • Output shaft seal
  • Inverter Duty IRIS™ insulation system
Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 4.8 F.L. Amps 2.4 F.L. Amps 5.6/2.8
S. F Amps 5.4 S. F Amps 2.7 S. F Amps 6/3
RPM 1800 Hertz 60/50
HP 1 1/2 Duty CONTINUOUS TYPE TF
KW 1.12
Frame 145TC Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code L
Insul Class F Protection NOT Therm.Prot.
Eff 100% 86.5 Eff 75%   PF 67.7
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number NONE CE Yes Bearing PE 6205
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 45 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 081341 Mounting RIGID Rotation REV
Assembly   Shaft Dia. 7/8 IN Ext. Diag. 005010.01

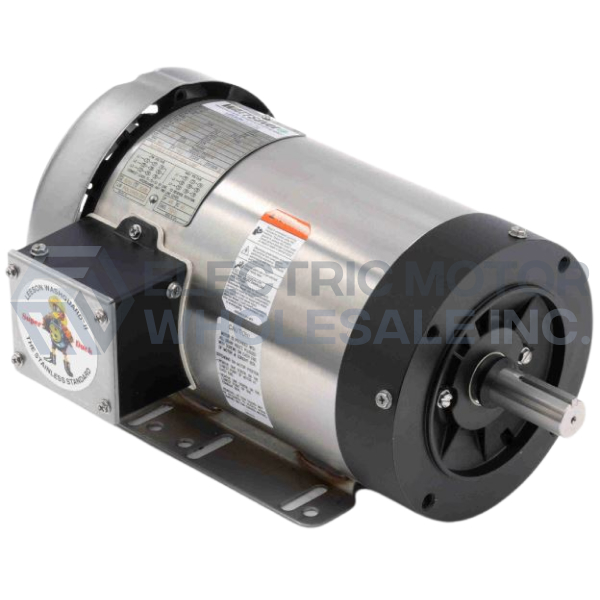

1.5HP LEESON 1750RPM 145TC TEFC 3PH WG MOTOR 121912
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 121912.00
Stock # 121912
