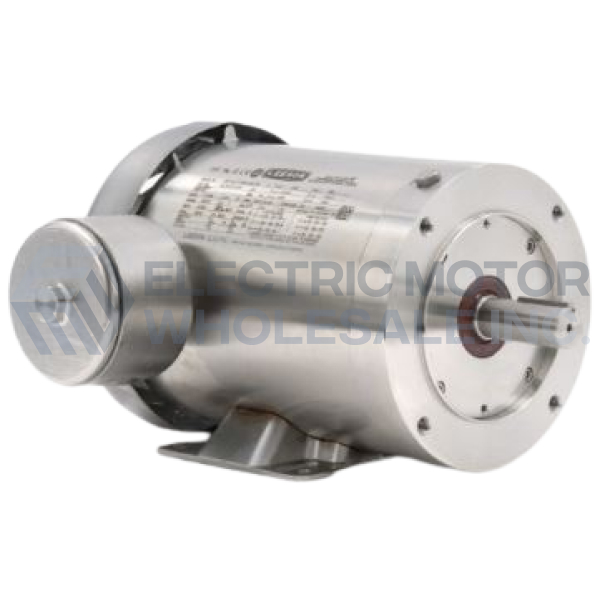

1HP LEESON 1760RPM 143TC TEFC 3PH WG MOTOR 121873
|LEESON Catalog Number:||121873.00|
|Ship Weight:||52 lbs.|
LEESON Three Phase WASHGUARD Premium Motors are designed specifically to meet the demanding sanitation requirements of the pharmaceutical, food processing and beverage industries. These motors are also ideal in clean room and severe chemical-processing applications involving frequent washdown with nitric acid and caustic lye. In fact, WASHGUARD All-Stainless Motors include IEEE 841 severe-duty features right out of the box! Motors have been tested to and passed the IEC IP-56 test requirements.
Mechanical Protection Features:
- All exterior components are 300-series stainless steel.
- Nothing on the motor's exterior is painted or coated in any way.
- All sealing components are Viton® for superior chemical resistance.
- Full fact nameplate is laser etched on the motor frame - no separately attached nameplate to trap dirt or contaminants.
- Endshields are O-ring sealed to the frame.
- Double lip shaft seals on both ends of TEFC motors (shaft end only on TENV motors)
- Removable hydrophobic breathers in opposite shaft endbell and conduit box equalize pressure without allowing moisture to enter.
- Exterior fastener use minimized reducing the number of entry points for moisture.
- Double-sealed bearings are pre-lubricated with moisture-resistant high-temperature grease for long life.
- Interior coatings applied to rotor and stator protect against corrosion.
- New conduit box mounting system provides optimum sealing.
- Ease to clean construction is BISSC Certified for bakery applications.
Standards and Approvals:
- Single and three phase motors are UL component recognized - file number E57948, guide number PRGY2.
- CSA Energy Efficiency Verification Program, report number EEV 78720-1.
- Construction is CSA Certified for safety report LR33543 and listed under BISSC authorization number 769.
|F.L. Amps||3.2||F.L. Amps||1.6||F.L. Amps||3.4/1.7|
|S. F Amps||3.6||S. F Amps||1.8||S. F Amps||4/2|
|Eff 100%||85.5||Eff 75%||PF||68.5|
|UL||Y-(LEESON UL REC)||CSA||Yes||Bearing OPE||6203|
|CC Number||NONE||CE||Yes||Bearing PE||6205|
|Load Type||Inverter Type||Speed Range||NONE|
|Motor Wt.||51.6 LB||Enclosure||TEFC||Lubrication||POLYREX EM|
