1.5HP LEESON 1750RPM 145TC TEFC 3PH MOTOR 121871

LEESON G121540.00 has been Superseded by 121871.00.

Catalog Number: 121871.00
Model Number: C145T17WK31
Description:  1.5HP,1750RPM,145TC,TEFC,3PH,60HZ,WASHGUARD
Ship Weight: 45 lbs.

LEESON WASHGUARD WHITE EPOXY Three Phase Motors are designed for superior extended service in severe environments. Typical applications include food processing areas requiring frequent sanitation procedures using high pressure cleaning with concentrated caustic solutions, areas of high humidity and in chemical environments.

  • LEESON'S original moisture-shedding "duck" motor
  • USDA-approved white epoxy finish
  • Stainless steel shaft, conduit box cover, nameplate, fan guard
  • Special gaskets, slingers and seals
  • Four endshield drains
  • IRIS insulation system
  • Moisture-resistant interior components
  • Meets IP55 enclosure protection
  • Three phase motors are suitable for use on VFDs
  • 10:1 ratio for constant or variable torque at 1:0 SF



Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 4.8 F.L. Amps 2.4 F.L. Amps 5.6/2.8
S. F Amps 5.4 S. F Amps 2.7 S. F Amps 6/3
RPM 1800 Hertz 60/50
HP 1 1/2 Duty CONTINUOUS TYPE TF
KW 1.12 Model # C145T17WK31 A
Frame 145TC Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code L
Insul Class F Protection NOT Therm.Prot.
Eff 100% 86.5 Eff 75%   PF 67.7
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number NONE CE Yes Bearing PE 6205
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 45 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 081341 Mounting RIGID C Rotation REV

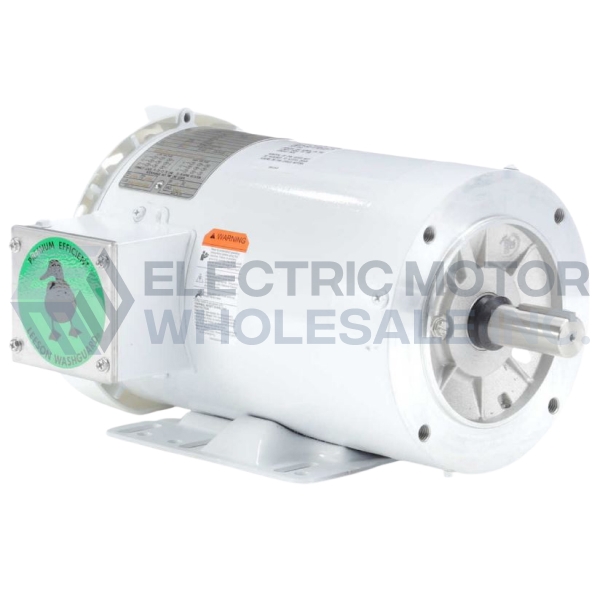

1.5HP LEESON 1750RPM 145TC TEFC 3PH MOTOR 121871
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 121871.00
Stock # 121871
Price: $455.00
Compare At: $1,204.00
