2HP LEESON 3510RPM 145JM TEFC 3PH PUMP MOTOR G121859.00
2HP LEESON 3510RPM 145JM TEFC 3PH PUMP MOTOR G121859.00

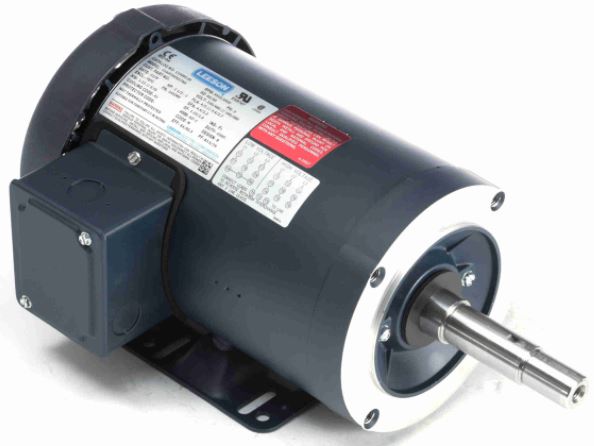

Picture is for reference only.
Part Number:
G121859.00Model/Spec Number:
C145T34FK37AManufacturer:
Leeson ObsoleteClick below to view suggested functional replacement.
Shipping Details
Weight:
38 lbsDimensions:
13 x 22 x 13 inchesHS Code:
8501.52.4000Technical Details
Specifications
Brand: | Leeson |
Application: | Closed Coupled |
Output HP: | 2//1.5 |
Output KW: | 1.1 |
Output RPM: | 3510 |
Frame Size NEMA: | 145JM |
Mount NEMA: | C Face With Base |
Enclosure NEMA: | TEFC |
Enclosure IEC: | IP43 |
Voltage: | 208-230/460//190/380 |
Documentation
Additional Information
| Volts | 208-230 | Volts | 460 | Volts | 190/380 |
| F.L. Amps | 5.6-5.2 | F.L. Amps | 2.6 | F.L. Amps | 4.8/2.4 |
| S. F Amps | 6.4-5.8 | S. F Amps | 2.9 | S. F Amps | |
| RPM | 3600 | Hertz | 60/50 | ||
| HP | 2 | Duty | CONTINUOUS | TYPE | TF |
| KW | 1.49 | Model Number | C145T34FK37A | ||
| Frame | 145JM | Serv. Factor | 1.15 | Phase | 3 |
| Max Amb | 40 | Design | B | Code | L |
| Insul Class | F | Protection | NOT | Therm.Prot. | |
| Eff 100% | 84 | Eff 75% | PF | 85 | |
| UL | Y-(LEESON UL REC) | CSA | Yes | Bearing OPE | 203 |
| CC Number | CE | Yes | Bearing PE | 206 | |
| Load Type | Inverter Type | Speed Range | NONE | ||
| Motor Wt. | 38 LB | Enclosure | TEFC | Lubrication | STANDARD |
| Nameplate | Mounting | RIGID | Rotation | REV |
