2HP LEESON 1760RPM 145JM TEFC 3PH PUMP MOTOR G121857.00

2HP LEESON 1760RPM 145JM TEFC 3PH PUMP MOTOR G121857.00

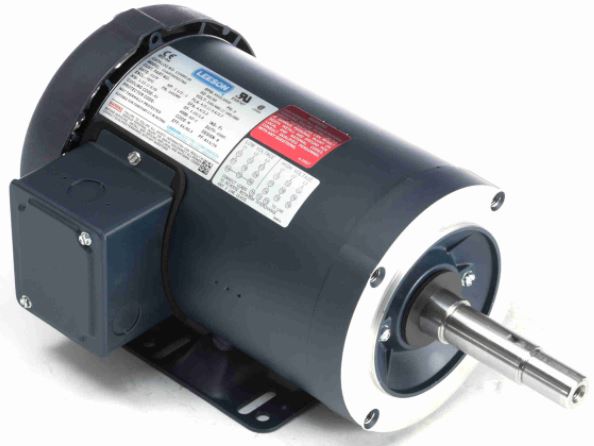

Picture is for reference only.

Part Number:

G121857.00

Model/Spec Number:

C145T17FK54A

Manufacturer:

Leeson Obsolete
G121857.00 LEESON 2HP Three Phase Pump Motor is designed for continuous duty service on close-coupled pumps using NEMA JM mounting provisions.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

52 lbs

Dimensions:

12 x 22 x 12 inches

HS Code:

8501.52.4000

Technical Details

Brand:

Leeson

Application:

Closed Coupled

Output HP:

2

Output KW:

1.5

Output RPM:

1750

Frame Size NEMA:

145JM

Mount NEMA:

C Face With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP43

Voltage:

208-230/460//190/380

Motor Drawing REF DASH-856

Connection Diagram

Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 6-5.6 F.L. Amps 2.8 F.L. Amps 5.2/2.6
S. F Amps 6.6-6.2 S. F Amps 3.1 S. F Amps 5.8/2.9
RPM 1800 Hertz 60/50
HP 2 Duty CONTINUOUS TYPE TF
KW 1.49 Model Number C145T17FK54A
Frame 145JM Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code L
Insul Class F Protection NOT Therm.Prot.
Eff 100% 84 Eff 75%   PF 80
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 203
CC Number   CE Yes Bearing PE 206
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 50 LB Enclosure TEFC Lubrication STANDARD
Nameplate   Mounting RIGID Rotation REV
