3HP LEESON 3490RPM 145JM DP 3PH ULTIMATE-E PUMP MOTOR G121854.00

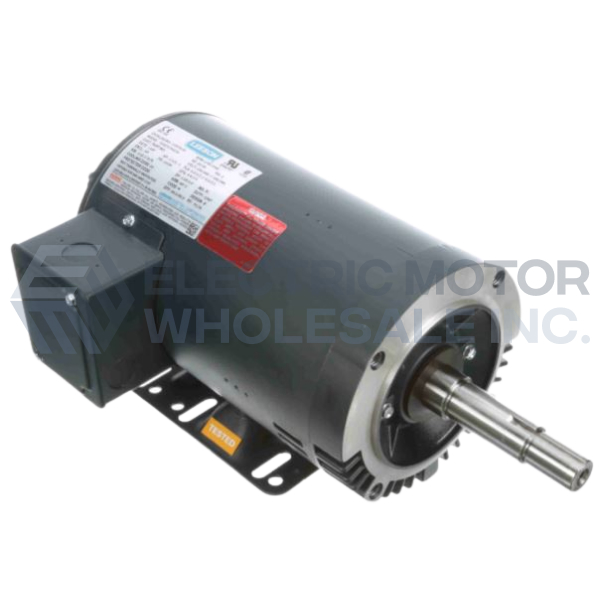

Picture is for reference only.

Part Number:

G121854

Model/Spec Number:

C145T34DK14A

Manufacturer:

Leeson Obsolete

G121854.00 LEESON 3HP Three Phase Premium JM Pump Motor is designed for continuous duty service on close-coupled pumps using NEMA JM mounting provisions.

Item Discontinued

Click below to view suggested functional replacement.

See Replacement Item

Shipping Details

Weight:

47 lbs

Dimensions:

13 x 22 x 13 inches

HS Code:

8501.52.4000

Technical Details

Specifications

Brand:	Leeson
Application:	Closed Coupled
Output HP:	2
Output KW:	2.2
Output RPM:	3490
Frame Size NEMA:	145JM
Mount NEMA:	C Face With Base
Enclosure NEMA:	DP
Enclosure IEC:	IP22
Voltage:	208-230/460//190/380

Documentation

Motor Drawing REF DASH-806

Connection Diagram

Additional Information

Volts	208-230	Volts	460	Volts	190/380
F.L. Amps	8.8-7.6	F.L. Amps	3.8	F.L. Amps	6.8/3.4
S. F Amps	10.7-9.2	S. F Amps	4.6	S. F Amps
RPM	3600	Hertz	60/50
HP	3	Duty	CONTINUOUS	TYPE	TD
KW	2.24	Model Number	C145T34DK14A
Frame	145JM	Serv. Factor	1.15	Phase	3
Max Amb	40	Design	B	Code	K
Insul Class	B	Protection	NOT	Therm.Prot.
Eff 100%	85.5	Eff 75%		PF	86
UL	Y-(LEESON UL REC)	CSA	Yes	Bearing OPE	203
CC Number	CC005A	CE	Yes	Bearing PE	206
Load Type		Inverter Type		Speed Range	NONE
Motor Wt.	45 LB	Enclosure	DP	Lubrication	STANDARD
Nameplate		Mounting	RIGID	Rotation	REV
