1.5HP LEESON 1740RPM 145TC TEFC 1PH BRAKEMOTOR 121815.00

Catalog Number:  121815.00 - FREE Ground Shipping in USA
Model Number:  C145K17FK17 A
Description:  1.5HP,1740RPM,145TC,TEFC,1PH,60HZ,BRAKE
Brake Rating:  10 ft-lbs
Ship Weight:  40 lbs.

LEESON Fail-Safe Positive Stop and Holding Brakemotor for use where quick response stopping and holding is required in the application, which may include conveyors, hoists, and packaging equipment.

FEATURES:

  • Made in USA
  • Durable rolled steel frame
  • 7/8" Keyed output shaft

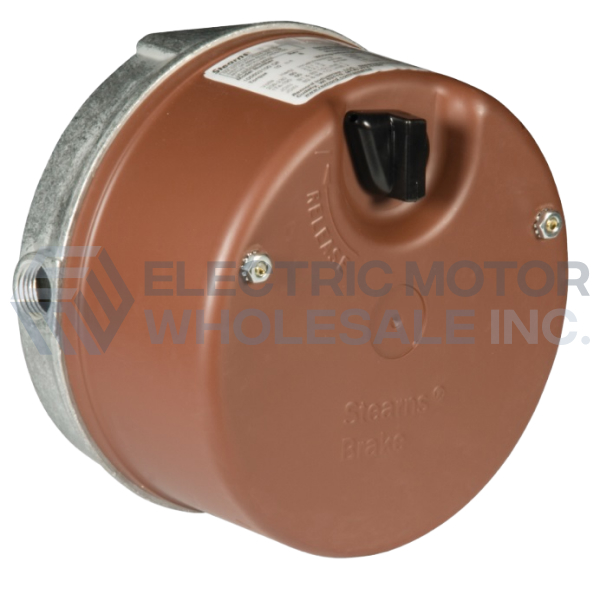

  • Standard brake manufactured by Stearns
  • Fail-safe positive stop and holding brakes
  • Load stops automatically when power is turned off
  • Power off manual release for convenience and for use in case of a power failure
  • The manual release resets automatically
  • Capacitor start/Capacitor run
  • Dual voltage brake coils rated for 115/230VAC, 60Hz.
  • The brake coil leads are brought into the conduit box of the motor for easy connection. Leads may be connected to operate when power to the motor is shut off and to be actuated independent of power to the motor.
Volts 115 Volts 208-230 Volts
F.L. Amps 17.2 F.L. Amps 8.8-8.6 F.L. Amps
S. F Amps None S. F Amps   S. F Amps
RPM 1800 Hertz 60
HP 1 1/2 Duty CONTINUOUS TYPE KF
KW 1.12 Model # C145K17FK17 A
Frame 145TC Serv. Factor 1.0 Phase 1
Max Amb 40 Design L Code J
Insul Class F Protection NOT Therm.Prot.
Eff 100% 79 Eff 75%   PF 73
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6205
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 40 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 993500 Mounting RIGID Rotation SELECTIVE CCW
Assembly   Shaft Dia. 7/8 IN Ext. Diag. 005054.19
Cust Part No   Outline 028837-750 Ext. Diag2
1.5HP LEESON 1740RPM 145TC TEFC 1PH BRAKEMOTOR 121815.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 121815.00
Stock # 121815
Price: $778.00
Compare At: $1,963.00
Quantity:
