1HP LEESON 1725RPM 143TC TEFC 115/208-230V 1PH MOTOR 121680.00

1HP LEESON 1725RPM 143TC TEFC 115/208-230V 1PH MOTOR 121680.00

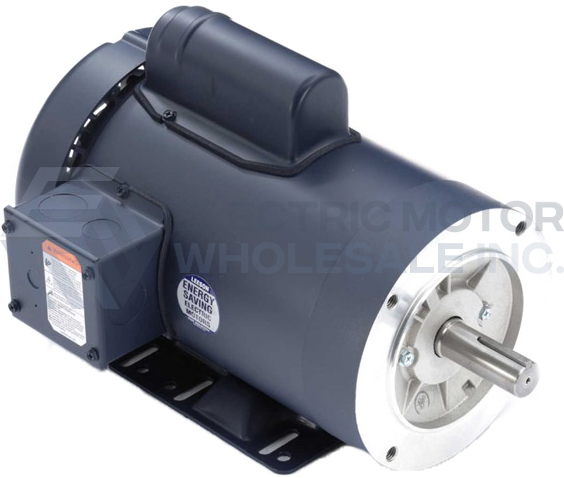

TEFC 145TC CS.jpg
Picture is for reference only.

Part Number:

121680.00

Model/Spec Number:

C143C17FK1

Manufacturer:

Leeson Obsolete
121680.00 LEESON 1HP Single Phase Electric Motor for use where water, dust and dirt exposure exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications.

Item Discontinued

Click below to request an agent review potential options.

Weight:

34 lbs

Dimensions:

14 x 24 x 14 inches

HS Code:

8501.40.6040

UPC:

691720348864

Technical Details

Application:

General Purpose

Output HP:

1

Output KW:

0.75

Output RPM:

1725

Frame NEMA:

143TC

Mount NEMA:

C-Face With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP43

Voltage:

115/208-230

Frequency (Hz):

60

Product Information Packet
