1HP LEESON 1725RPM 143TC DP 3PH BRAKE MOTOR 121678

LEESON Catalog Number:  121678.00
Description:  1HP,1725RPM,143TC,DP,3PH,60HZ,BRAKE
Ship Weight:  42 lbs.

This Leeson Motor is a Build To Order product and factory lead times are approximately 3-6 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales office for particulars.

LEESON Fail-safe positive, stop and hold brakemotors. Brakes are spring set. Load stopped automatically when power is turned off. LEESON brakemotors feature a power off manual release for convenience, and for use in case of a power failure. The manual release resets automatically. The standard brake is manufactured by Stearns. The brake coil leads are brought into the conduit box of the motor for easy connection and may be connected to operate when power to the motor is shut off, or to be actuated independent of power to the motor.

Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 4.2 F.L. Amps 2.1 F.L. Amps 4/2
S. F Amps 4.5 S. F Amps 2.25 S. F Amps 4.2/2.1
RPM 1800 Hertz 60/50
HP 1 Duty CONTINUOUS TYPE TD
KW 0.75 Model # C143T17DC14A
Frame 143TC Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code K
Insul Class B Protection NOT Therm.Prot.
Eff 100% 78.5 Eff 75%   PF 58
UL Yes CSA Yes Bearing OPE 6203
CC Number NONE CE No Bearing PE 6205
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 42 LB Enclosure DP Lubrication POLYREX EM
Nameplate 004002 Mounting C FACE Rotation REV

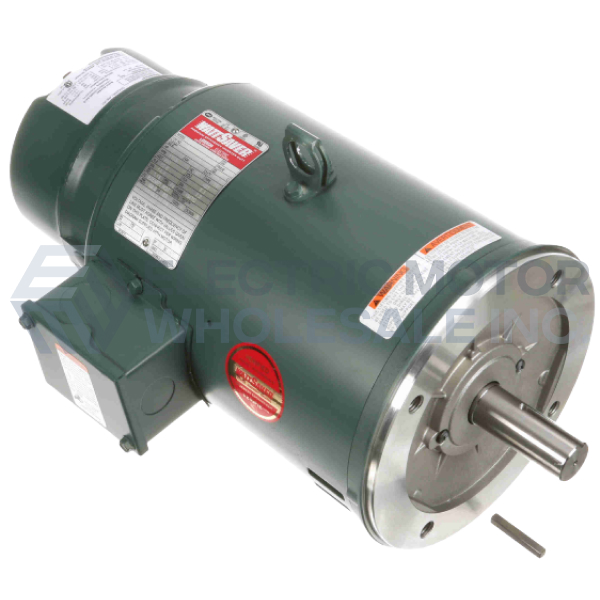

1HP LEESON 1725RPM 143TC DP 3PH BRAKE MOTOR 121678
Click Image to Enlarge
Manufacturer Part Number: 121678.00
Stock # 121678
