2HP LEESON 1740RPM 145TC TEFC 1PH WG MOTOR 121632.00

Catalog Number: 121632.00
Model Number: CZ145K17WK1
Description:  2HP,1740RPM,145TC,TEFC,1PH,60HZ,WASHGUARD
Ship Weight: 57 lbs.

This Leeson motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.

APPLICATIONS: Designed specifically to meet the demanding sanitation requirements of the pharmaceutical, food processing and beverage industries. These motors are also ideal in clean room and severe chemical-processing applications involving frequent washdown with nitric acid and caustic lye. In fact, WASHGUARD All-Stainless Motors include IEEE 841 severe-duty features right out of the box! Motors have been tested to and passed the IEC IP-56 test requirements.

FEATURES:

  • Made in USA
  • Premium Stainless Duck
  • 7/8" shaft output diameter
  • Steel frame design
  • C-Face with base
  • TEFC totally enclosed non-vented
Volts 115 Volts 208-230 Volts
F.L. Amps 20 F.L. Amps 10.2-10 F.L. Amps
S. F Amps 22 S. F Amps 11.2-11 S. F Amps
RPM 1800 Hertz 60
HP 2 Duty CONTINUOUS TYPE KF
KW 1.49 Model # CZ145K17WK1B
Frame 145TC Serv. Factor 1.15 Phase 1
Max Amb 40 Design L Code J
Insul Class F Protection NOT Therm.Prot.
Eff 100% 80 Eff 75%   PF 80
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number NONE CE No Bearing PE 6205
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 57 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 081120 Mounting RIGID Rotation SELECTIVE CCW
Assembly 042539 Shaft Dia. 7/8 IN Ext. Diag. 005314.03

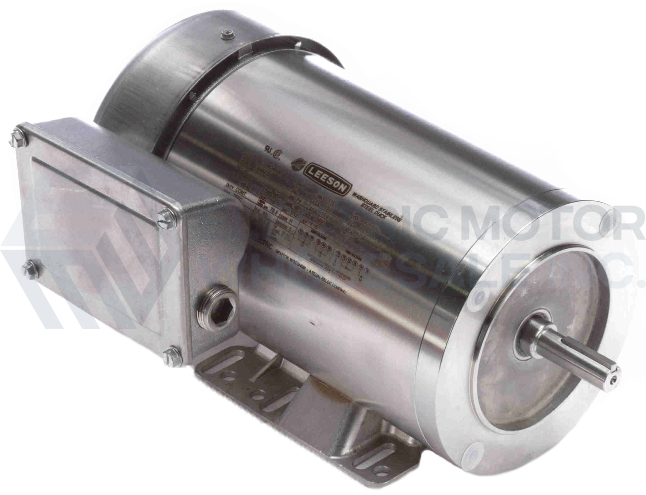

2HP LEESON 1740RPM 145TC TEFC 1PH WG MOTOR 121632.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 121632.00
Stock # 121632
Price: $905.00
Compare At: $2,359.00
