1HP LEESON 1725RPM 143TC TEFC 3PH BRAKE MOTOR 121556.00

1HP LEESON 1725RPM 143TC TEFC 3PH BRAKE MOTOR 121556.00

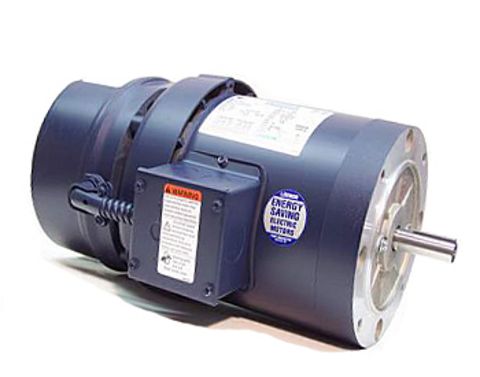

Picture is for reference only.

Part Number:

121556.00

Model/Spec Number:

C143T17FC30

Manufacturer:

Leeson Obsolete
121556.00 LEESON 1HP Three Phase Totally Enclosed Brake motor is designed for use with conveyors, packaging equipment, machine tools, hoists, elevators and door operators.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

37 lbs

Dimensions:

14 x 18 x 14 inches

HS Code:

8501.52.4000

Technical Details

Brand:

Leeson

Application:

Brakemotor

Output HP:

1

Output KW:

0.75

Output RPM:

1725

Frame Size NEMA:

143TC

Mount NEMA:

C Face No Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP43

Voltage:

208-230/460

Motor Drawing REF DASH-650

Connection Diagram
