3HP LEESON 3490RPM 145T DP 3PH WATTSAVER MOTOR 121516.00

Catalog Number:  121516.00 - FREE Ground Shipping In USA
Model Number:  C145T34DB16C
Description:  3HP,3490RPM,145T,DP,3PH,60/50HZ,WATTSAVER
Ship Weight:  46 lbs.

LEESON WATTSAVER Motor carries a three-year warranty in general purpose and inverter fed applications. These motors meet or exceed most utility rebate programs and the EPACT federally mandated efficiency levels. The efficiency ratings have been verified to IEEE 112B test standards by LEESON's NVLAP-Certified lab.

FEATURES:

  • Made in USA
  • 7/8" shaft output diameter
  • Steel frame
  • NEMA Premium efficient motor with 3 year warranty
  • Inverter-rated
  • Nameplated for 50 Hz operation
  • Class F insulation systems
  • Shielded ball bearings for direct coupled applications
  • UL recognized and CSA certified
  • NEMA Premium efficient motor with 3 year warranty

APPLICATIONS: For use where water and dust exposure is minimal. Ideally suited for use on pumps, compressors, blowers, fans and other standard industrial applications.

Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 8-7.2 F.L. Amps 3.6 F.L. Amps 8.8/4.4
S. F Amps 9-8.4 S. F Amps 4.2 S. F Amps 10.6/5.3
RPM 3600 Hertz 60/50
HP 3 Duty CONTINUOUS TYPE TD
KW 2.24 Model Number C145T34DB16C
Frame 145T Serv. Factor 1.25 Phase 3
Max Amb 40 Design B Code K
Insul Class F Protection AUTOMATIC Therm.Prot. 9700K46
Eff 100% 86.5 Eff 75%   PF 88
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number NONE CE Yes Bearing PE 6205
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 46 LB Enclosure DP Lubrication POLYREX EM
Nameplate 993500 Mounting RIGID Rotation REV

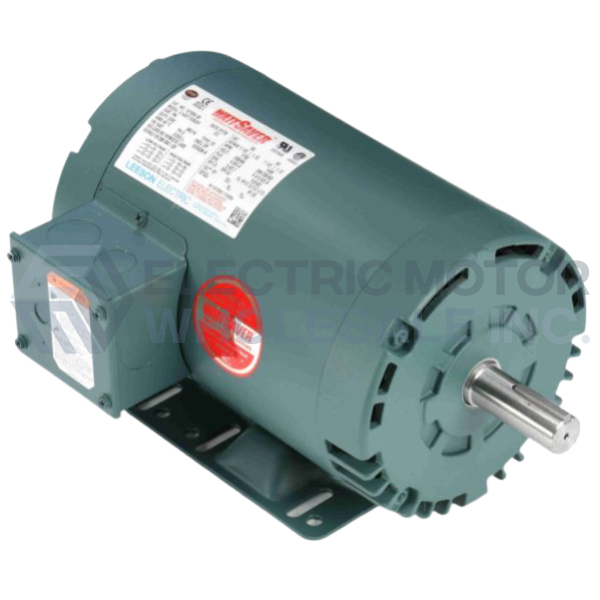

3HP LEESON 3490RPM 145T DP 3PH WATTSAVER MOTOR 121516.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 121516.00
Stock # 121516
Price: $302.00
Compare At: $890.00
