3HP LEESON 1760RPM 145TC DP 3PH MOTOR 121405.00
3HP LEESON 1760RPM 145TC DP 3PH MOTOR 121405.00

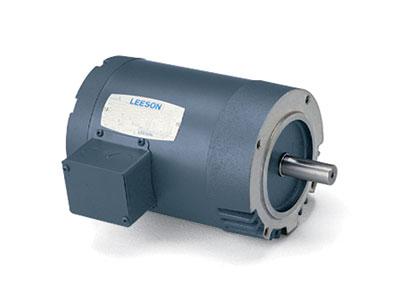

Picture is for reference only.
Part Number:
121405Manufacturer:
Leeson ObsoleteManufacturer Part Number:
121405.00This is item is for informational purposes only and cannot be purchased. Please contact customer service for more details.
Shipping Details
Dimensions:
12 x 20 x 12 inchesTechnical Details
Specifications
Application: | General Purpose |
Output HP: | 3 |
Output RPM: | 1300-1800 (4P) |
Frame Size NEMA: | 143-5TC |
Mount NEMA: | C Face No Base |
Enclosure NEMA: | DP |
Voltage: | 208-230/460 |
Frequency (Hz): | 60 |
Efficiency: | IE2: High Eff. |
Thermal Protection: | None |
Documentation
Additional Information
This LEESON motor has been discontinued
No direct frame replacment available
| Catalog Number: | 121405.00 |
| Model Number: | C145T17DC39 A |
| Description: | 3HP,1760RPM,145TC,DP,3PH,60HZ |
| Ship Weight: | 48 lbs. |
| Volts | 208-230 | Volts | 460 | Volts | |
| F.L. Amps | 8.6 | F.L. Amps | 4.3 | F.L. Amps | |
| S. F Amps | 9.8 | S. F Amps | 4.9 | S. F Amps | |
| RPM | 1800 | Hertz | 60 | ||
| HP | 3 | Duty | CONTINUOUS | TYPE | TD |
| KW | 2.238 | Model Number | C145T17DC39A | ||
| Frame | 145TC | Serv. Factor | 1.15 | Phase | 3 |
| Max Amb | 40 | Design | C | Code | J |
| Insul Class | F | Protection | NOT | Therm.Prot. | |
| Eff 100% | 82.5 | Eff 75% | PF | 79 | |
| UL | Yes | CSA | Yes | Bearing OPE | 6203 |
| CC Number | CE | No | Bearing PE | 6205 | |
| Load Type | Inverter Type | NONE | Speed Range | NONE | |
| Motor Wt. | 48 LB | Enclosure | DP | Lubrication | POLYREX EM |
| Nameplate | 004002 | Mounting | C FACE | Rotation | REV |
