2HP LEESON 3450RPM 145JM DP 1PH MOTOR 121190.00

Catalog Number:  121190.00 - FREE Ground Shipping in USA
Model Number:  C145C34DK3 C
Description:  2HP,3450RPM,145JM,DP,1PH,60HZ,JM PUMP
Ship Weight:  47 lbs.

LEESON JM Pump Motor is designed for continuous duty service on close-coupled pumps using NEMA JM mounting provisions. All motors have a rigid mounting base and NEMA JM pump shaft.


  • Made in USA
  • Durable rolled steel frame
  • Capacitor Start
  • High efficiency copper windings with NEMA 1.15 service factors
  • UL and CSA recognized designs
  • Cooling air exhausts at the shaft end for maximum cooling
  • Oversized locked bearing on shaft end limits axial shaft movement
  • Uses drip cover kit 175004.00
  • Warranty: 12 months from the date of purchase or 18 months from the date of manufacture, whichever comes first
Volts 115 Volts 208-230 Volts
F.L. Amps 21 F.L. Amps 10.5 F.L. Amps
S. F Amps 22.4 S. F Amps 11.2 S. F Amps
RPM 3600 Hertz 60
KW 1.49 Model Number C145C34DK3C
Frame 145JM Serv. Factor 1.15 Phase 1
Max Amb 40 Design L Code H
Insul Class B Protection NOT Therm.Prot.
Eff 100% 73 Eff 75%   PF 85
UL Yes CSA Yes Bearing OPE 6203
CC Number   CE No Bearing PE 6206
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 47 LB Enclosure DP Lubrication POLYREX EM
Nameplate 004003 Mounting RIGID Rotation SELECTIVE CCW

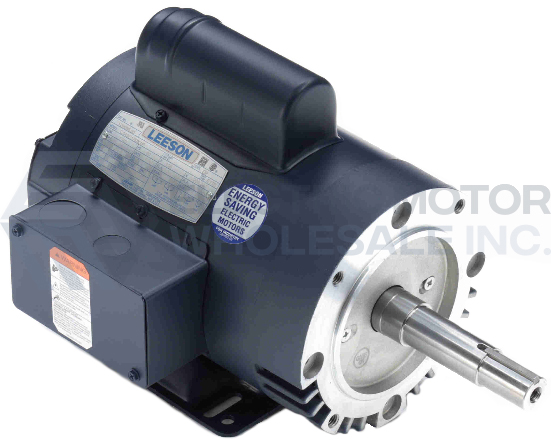

2HP LEESON 3450RPM 145JM DP 1PH MOTOR 121190.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 121190.00
Stock # 121190
Price: $280.00
Compare At: $1,045.00
