2HP LEESON 3600RPM 145TC ODP 115/208-230V 1PH MOTOR 121184.00

Catalog Number:  121184.00 - FREE Ground Shipping in USA
Model Number:  C145C34DC4B
Description:  2HP,3450RPM,145TC,DP,115/208-230V,1PH,60HZ
Ship Weight:  40 lbs.

This Leeson motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.

APPLICATIONS: For use where water and dust exposure is moderate. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.


  • Made in USA
  • Durable rolled steel frame
  • 7/8" Keyed output shaft
  • Double shielded ball bearings
  • Continuous duty
  • Thermally protected ratings
  • Capacitor Start
  • UL Recognized Component Listing and CSA approval
  • Warranty: 12 months from the date of purchase or 18 months from the date of manufacture, whichever comes first
Volts 115   Volts 208-230   Volts
FL Amps 20   FL Amps 11-10   FL Amps
SF Amps 23.6   SF Amps 12.8-11.8   SF Amps
RPM 3600   Hertz 60
HP 2   Duty CONTINUOUS   Type CD
KW 1.49   SF 1.15   Phase 1
Frame 145TC   Design L   KVA Code J
Ambient 40   Protection NOT   Therm.Prot.
Insulation Class B   Eff(75%)     PF 82
Eff(100%) 77   CSA Y   Bearing OPE 6203
UL Y   CE N   Bearing PE 6205
CC Number EXEMPT   Inverter Type     Speed Range NONE
LOad Type
Motor Wt. 40 LB   Enclosure DP   Lubrication POLYREX EM
Nameplate 004003   Mounting ROUND   Rotation SELECTIVE CCW
Shaft Diam. 7/8 IN   Cust Part No.     Packaging B
      Winding C632234   Carton Label Leeson Gen Purpose
      Group 3   Iris
Paint BLUE - LEESON (ENAMEL)   Hazardous Location NONE   Test Card 01

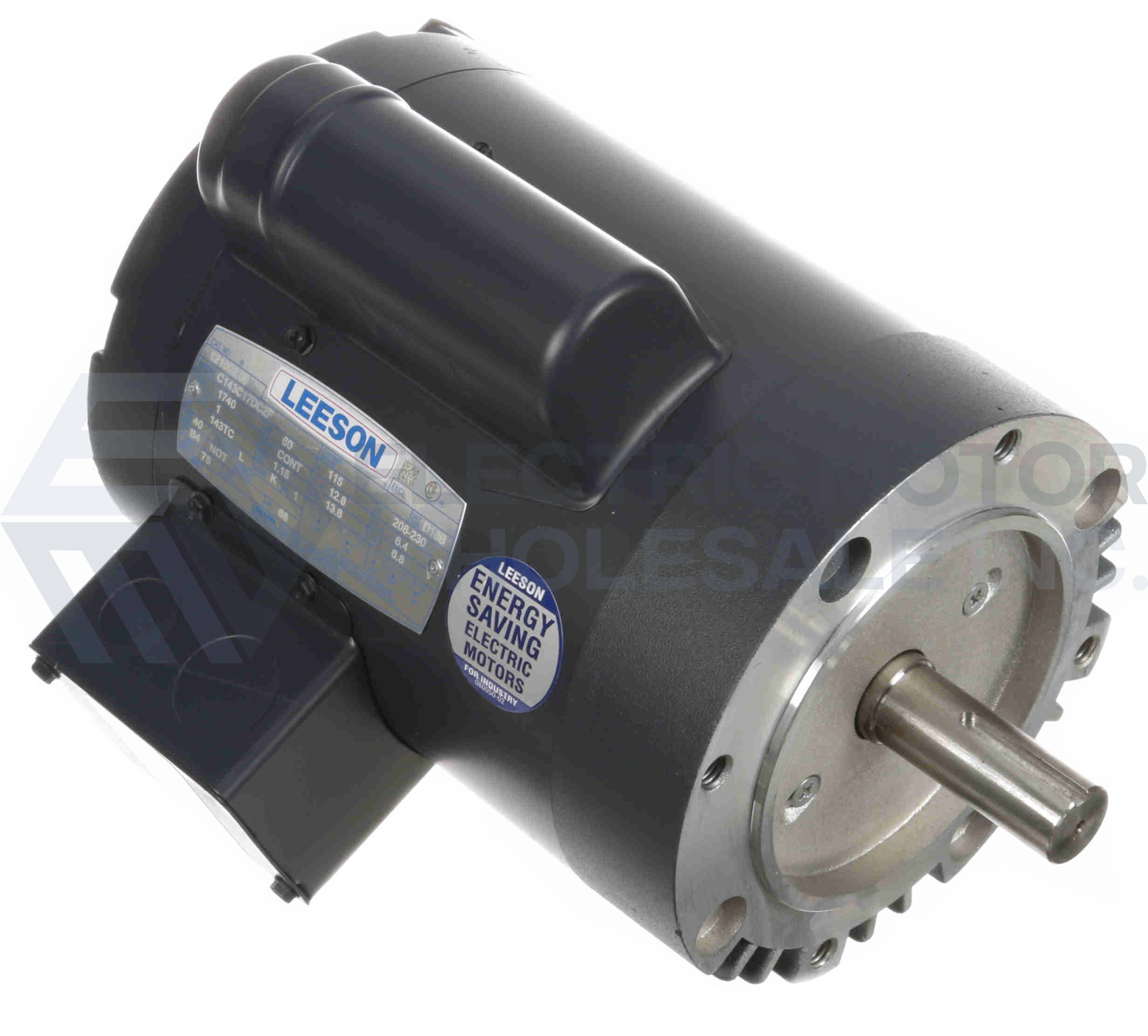

2HP LEESON 3600RPM 145TC ODP 115/208-230V 1PH MOTOR 121184.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 121184.00
Stock # 121184
Price: $417.00
Compare At: $987.00
