2HP LEESON 3450RPM 145TC TENV 3PH MOTOR 121039.00

LEESON 121039.00 has been superseded by 122185.00

Catalog Number: 121039.00
Model Number: C145T34VK1
Description:  2HP,3450RPM,145TC,TENV,3PH,60HZ,WASHGUARD
Ship Weight: 44 lbs.
Volts 208-230 Volts 460 Volts
F.L. Amps 5.6-5 F.L. Amps 2.5 F.L. Amps
S. F Amps 5.9-5.6 S. F Amps 2.8 S. F Amps
RPM 3600 Hertz 60
HP 2 Duty CONTINUOUS TYPE TN
KW 1.49 Model # C145T34VK1G
Frame 145TC Serv. Factor 1.15 Phase 3
Max Amb 40 Design A Code M
Insul Class F Protection NOT Therm.Prot.
Eff 100% 84 Eff 75%   PF 88
UL Yes CSA Yes Bearing OPE 6203
CC Number EXEMPT CE Yes Bearing PE 6205
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 44 LB Enclosure TENV Lubrication POLYREX EM
Nameplate 080904 Mounting RIGID Rotation REV

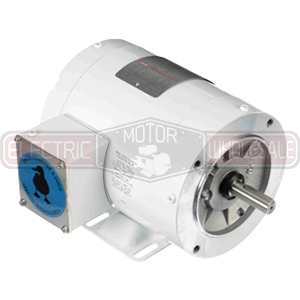

2HP LEESON 3450RPM 145TC TENV 3PH MOTOR 121039.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 121039.00
Stock # 121039
