3HP LEESON 1740RPM 145TC TEFC 3PH MOTOR 121035.00

3HP LEESON 1740RPM 145TC TEFC 3PH MOTOR 121035.00

Picture is for reference only.

Part Number:

121035

Manufacturer:

Leeson Obsolete

Manufacturer Part Number:

121035.00
LEESON 121035.00 has been discontinued

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Dimensions:

14 x 22 x 14 inches

Technical Details

Application:

General Purpose

Output HP:

3

Output RPM:

1300-1800 (4P)

Frame Size NEMA:

143-5TC

Mount NEMA:

C Face No Base

Enclosure NEMA:

TEFC

Voltage:

208-230/460

Frequency (Hz):

60

Efficiency:

IE2: High Eff.

Thermal Protection:

None

Motor Drawing REF DASH-800

Connection Diagram

LEESON 121035.00 has been discontinued

Catalog Number:  121035.00
Model Number:  C145T17FC35 F
Description:  3HP,1740RPM,145TC,TEFC,3PH,60HZ
Ship Weight:  47 lbs.
Image for 3HP LEESON 1760RPM 182TC TEFC 3PH MOTOR G131491.00

3HP LEESON 1760RPM 182TC TEFC 3PH MOTOR G131491.00

Image for 3HP BALDOR 1750RPM 145TC TEFC 3PH MOTOR VM3561T

3HP BALDOR 1750RPM 145TC TEFC 3PH MOTOR VM3561T

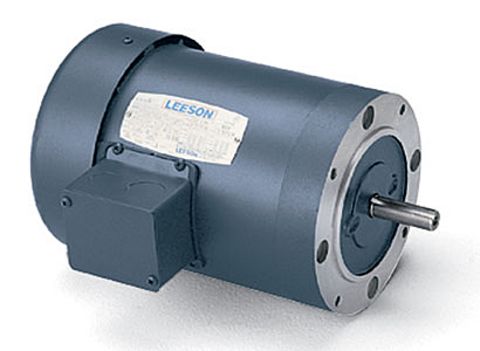

Image for 3HP LEESON 1765RPM 145TC TEFC 230VAC 3PH MOTOR 102407.00

3HP LEESON 1765RPM 145TC TEFC 230VAC 3PH MOTOR 102407.00

Image for 3HP BALDOR 1760RPM 145TC TEFC 3PH SUPER-E MOTOR VEM3561T

3HP BALDOR 1760RPM 145TC TEFC 3PH SUPER-E MOTOR VEM3561T

MSRP: $1,446.00

Regular Price

$

1,039

19

Image for 3HP KB Electronics KBDF-29 IP-20 VFD 230VAC 1PH INPUT 9700

3HP KB Electronics KBDF-29 IP-20 VFD 230VAC 1PH INPUT 9700

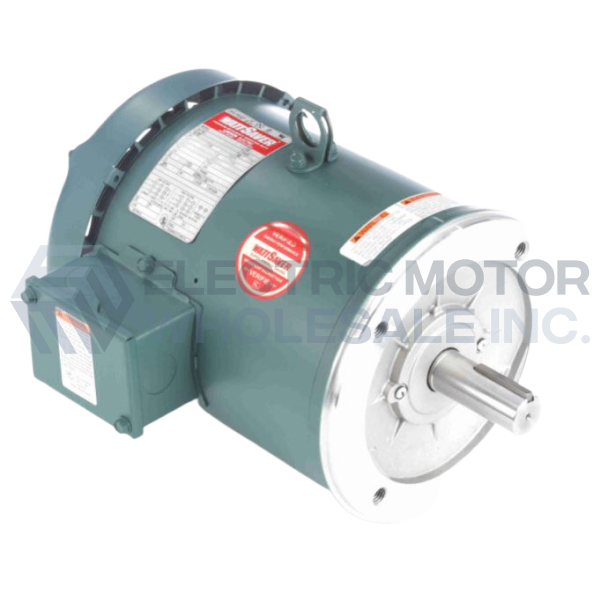

Image for 3HP LEESON 1760RPM 182TC TEFC 3PH PREMIUM MOTOR 131503.00
