1.5HP LEESON 1750RPM 145T DP 3PH WATTSAVER MOTOR 121004.00

Catalog Number:  121004.00 - Made in USA
Model Number:  C145T17DB32 F
Description:  1.5HP,1750RPM,145T,DP,3PH,WATTSAVER
Ship Weight:  43.5 lbs.

LEESON WATTSAVER motors carry a three-year warranty in general purpose and inverter fed applications. These motors meet or exceed most utility rebate programs and the EPACT federally mandated efficiency levels. The efficiency ratings have been verified to IEEE 112B test standards by LEESON's NVLAP-Certified lab.

FEATURES:

  • Made in USA
  • 7/8" shaft output diameter
  • Steel frame
  • Premium efficient motor with 3 year warranty
  • Inverter-rated
  • Nameplated for 50 Hz operation
  • Class F insulation systems
  • Shielded ball bearings for direct coupled applications
  • UL recognized and CSA certified

APPLICATIONS: For use where water and dust exposure is minimal. Ideally suited for use on pumps, compressors, blowers, fans and other standard industrial applications.

Volts 208-230 Volts 460 Volts N/A
F.L. Amps 4.6-4.8 F.L. Amps 2.4 F.L. Amps N/A
S. F Amps 5.2-5.4 S. F Amps 2.7 S. F Amps N/A
RPM 1800 Hertz 60/50
HP 1 1/2 Duty CONTINUOUS TYPE TD
KW 1.12 Model Number C145T17DB32F
Frame 145T Serv. Factor 1.25 Phase 3
Max Amb 40 Design B Code L
Insul Class F Protection T/STAT Therm.Prot. 9700K46
Eff 100% 86.5 Eff 75%   PF 67.7
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number NONE CE Yes Bearing PE 6205
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 43.5 LB Enclosure DP Lubrication POLYREX EM
Nameplate 993500 Mounting RIGID Rotation REV

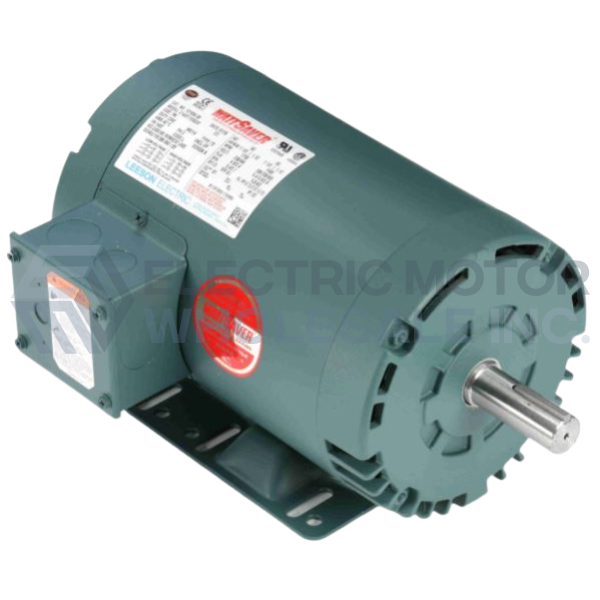

1.5HP LEESON 1750RPM 145T DP 3PH WATTSAVER MOTOR 121004.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 121004.00
Stock # 121004
Price: $270.00
Compare At: $786.00
