2HP LEESON 1740RPM 145JM DP 1PH MOTOR 120995.00

Catalog Number:  120995.00 Made in USA
Model Number:  C145K17DK9F
Description:  2HP,1740RPM,145JM,DP,1PH,60HZ,JM PUMP
Ship Weight:  47 lbs.

APPLICATIONS: Designed for continuous duty service on close-coupled pumps using NEMA JM & JP mounting provisions. All motors have a rigid mounting base and NEMA JM & JP pump shaft.


  • Made in USA
  • 7/8" shaft output diameter
  • High efficiency copper windings with NEMA 1.15 service factors
  • UL and CSA recognized designs
  • All 180 and 210 frame rolled steel motors have Class F Insulation
  • Open drip-proof construction
  • Cooling air exhausts at the shaft end for maximum cooling
  • Oversized locked bearing on shaft end limits axial shaft movement
  • Uses drip cover kit 175004.00
Volts 115 Volts 208-230 Volts
F.L. Amps 21 F.L. Amps 10.5 F.L. Amps
S. F Amps 23 S. F Amps 11.5 S. F Amps
RPM 1800 Hertz 60
KW 1.49 Model Number C145K17DK9 F
Frame J145JM Serv. Factor 1.15 Phase 1
Max Amb 40 Design L Code H
Insul Class B Protection NOT Therm.Prot.
Eff 100% 80 Eff 75%   PF 79
UL Yes CSA Yes Bearing OPE 6203
CC Number   CE No Bearing PE 6206
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 51 LB Enclosure DP Lubrication POLYREX EM
Nameplate 004003 Mounting RIGID C Rotation SELECTIVE CCW

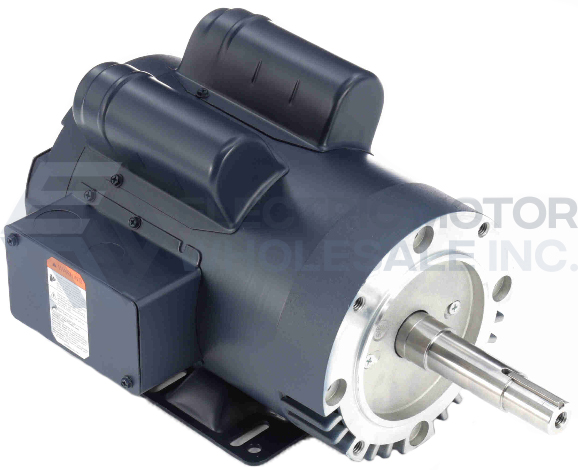

2HP LEESON 1740RPM 145JM DP 1PH MOTOR 120995.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 120995.00
Stock # 120995
Price: $257.00
Compare At: $913.00
