1/.5HP LEESON 1725/850RPM 143T TEFC 460V 3PH MOTOR 120943

LEESON Catalog Number:  120943.00
Description:  1/.5HP,1725/850RPM,143T,TEFC,460V,3PH,60HZ,2-SPEED
Ship Weight:  39 lbs.

This Leeson Motor is a Build To Order product and factory lead times are approximately 3-6 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales office for particulars.

APPLICATIONS: LEESON Two Speed One Winding Constant Torque Electric Motors are designed for use in applications in which multiple speeds are required.

Constant Torque motors are capable of developing the same torque for all speeds. Their horsepower ratings vary directly with the speed. Constant torque motors are used on mixers, compressors, conveyors, printing presses, extractors, feeders and laundry machinery.

Constant Horsepower motors develop the same horsepower at all operating speeds, and the torque varies inversely with the speed. These motors are often used on machine tools, such as drills, lathes, punch presses and milling machines.

Volts 460 Volts   Volts 460
F.L. Amps 1.4 F.L. Amps   F.L. Amps 1.6
S. F Amps   S. F Amps   S. F Amps
RPM 1800 Hertz 60/60
KW .75 Model # C143T48FB9D
Frame 143T Serv. Factor 1.0 Phase 3
Max Amb 40 Design NO DESIGN CODE Code G
Insul Class F Protection NOT Therm.Prot.
Eff 100%   Eff 75%   PF
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6205
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 39 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 993500 Mounting RIGID Rotation REV

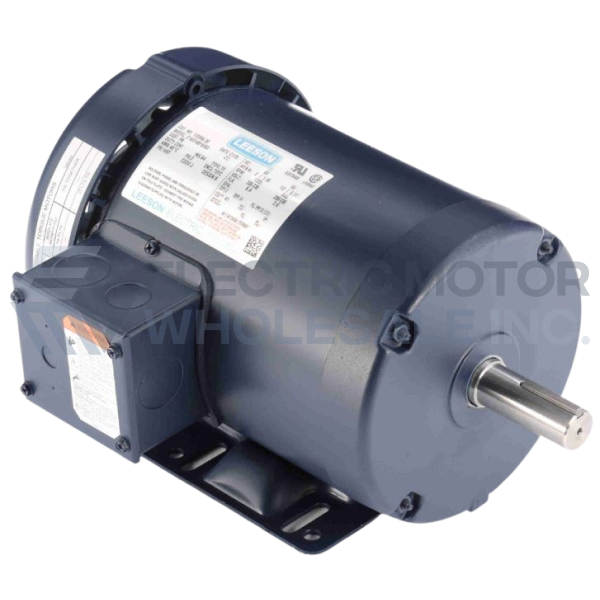

1/.5HP LEESON 1725/850RPM 143T TEFC 460V 3PH MOTOR 120943
Click Image to Enlarge
Manufacturer Part Number: 120943.00
Stock # 120943
Price: $740.00
Compare At: $1,801.00
