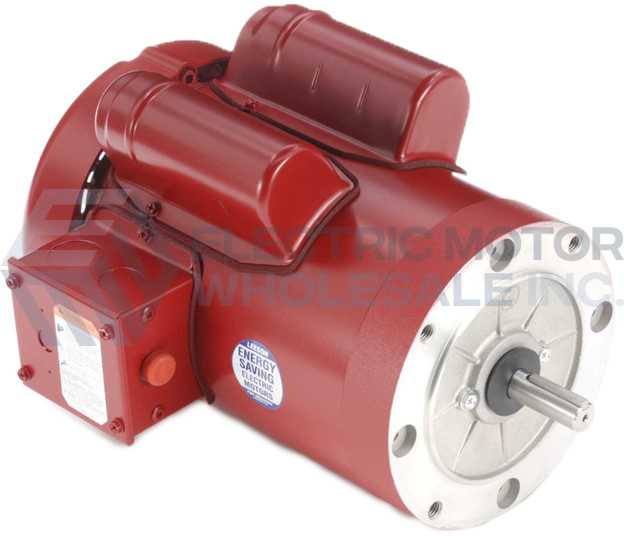

2HP LEESON 1725RPM 145TC TEFC 1PH HI-TORQUE MOTOR 120855.00

Catalog Number:  120855.00 - FREE Ground Shipping in Continental USA
Model Number:  M145K17FC13N
Description:  2HP,1725RPM,145TC,TEFC,HI-TORQUE,1PH,60HZ
Motor Type:  Capacitor Start Capacitor Run
Ship Weight:  45 lbs.

APPLICATIONS: Designed specifically for severe "farm duty" environments and applications, but work excellently in standard environments such as Air compressors, pumps and other single phase machinery.

Mechanical Features:

  • Made in USA
  • Steel frame
  • 7/8" shaft output diameter
  • Gasketed capacitor housing and conduit boxes provide protection in all environments.
  • Double sealed ball bearings pre-lubricated with Exxon POLYREX EM grease having operating temperature range of -20*F to +350*F and special formulation to provide extra bearing protection.
  • Rubber boot over manual protector reset button provides weather protection.

Electrical Features:

  • Low temperature manual overload protector protects against extreme overload.
  • Class "F" copper windings and varnish.
  • Capacitor start provides high starting torque with normal starting current.

120855.00 LEESON

2HP LEESON 1725RPM 145TC TEFC 1PH HI-TORQUE MOTOR 120855.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 120855.00
Stock # 120855.00
Price: $375.00
Compare At: $1,686.00
