1.5HP LEESON 1740RPM 145TC TEFC 3PH EPOXY MOTOR 120761.00

LEESON 120761.00 has been superseded by 122180.00

Catalog Number:  120761.00
Description:  1.5HP,1740RPM,145TC,TEFC,3PH,60HZ,EPOXY WASHGUARD
Ship Weight:  47 lbs.
Volts 208-230 Volts 460 Volts
F.L. Amps 4.2 F.L. Amps 2.1 F.L. Amps
S. F Amps 4.6 S. F Amps 2.3 S. F Amps
RPM 1800 Hertz 60
HP 1 1/2 Duty CONTINUOUS TYPE TN
KW 1.12
Frame 145TC Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code K
Insul Class F Protection NOT Therm.Prot.
Eff 100% 84 Eff 75%   PF 80
UL Yes CSA Yes Bearing OPE 6203
CC Number   CE Yes Bearing PE 6205
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 47 LB Enclosure TENV Lubrication POLYREX EM
Nameplate 080904 Mounting ROUND Rotation REV

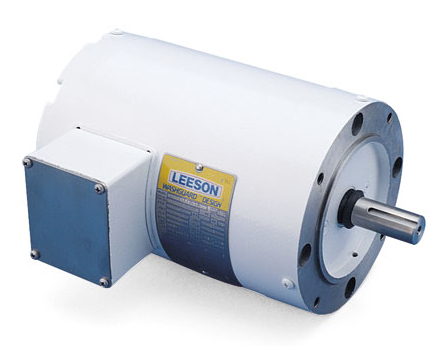

1.5HP LEESON 1740RPM 145TC TEFC 3PH EPOXY MOTOR 120761.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 120761.00
Stock # 120761
