1.5HP LEESON 1740RPM 145T TEFC 1PH EPOXY WASHDOWN MOTOR 120590.00

1.5HP LEESON 1740RPM 145T TEFC 1PH EPOXY WASHDOWN MOTOR 120590.00

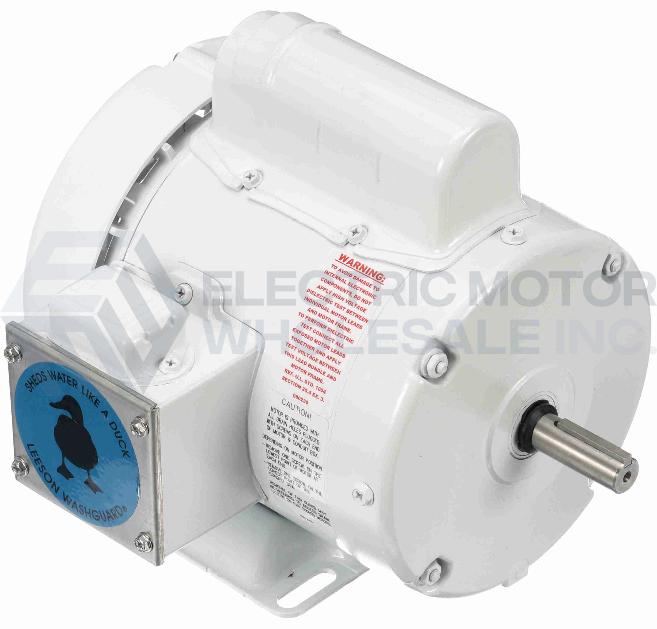

WASHGUARD 56 FRAME TEFC WITH BASE.jpg
Picture is for reference only.

Part Number:

120590.00

Model/Spec Number:

C145C17WB1

Manufacturer:

Leeson Obsolete
120590.00 LEESON 1.5HP Single Phase Washguard Epoxy Motor designed for enhanced performance in wet, humid areas that you may find in food processing plants, chemical processing, pharmaceutical plants and the beverage and brewing industries.

Item Discontinued

Click below to request an agent review potential options.

Weight:

52 lbs

Dimensions:

13 x 22 x 13 inches

HS Code:

8501.40.6040

UPC:

691720015766

Technical Details

Application:

Washdown Epoxy

Output HP:

1.5

Output KW:

1.1

Output RPM:

1740

Frame NEMA:

145T

Mount NEMA:

Base Mount

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

Voltage:

115/208-230

Frequency (Hz):

60

Product Information Packet
