1.5HP LEESON 3450RPM 143TZ TENV 3PH MOTOR 120377

LEESON Catalog Number:  120377.00
Description:  1.5HP,3450RPM,143TZ,TENV,3PH,60HZ,AERATION
Ship Weight:  34 lbs.
LEESON Three Phase Aeration Fan Motors are totally enclosed air over motors, dust tight, suitable for shaft mounted fans and are designed to be used within the airflow of the driven fan, these motors offer protection from the environment and are finished in epoxy enamel to resist corrosion in tough atmospheres.
  • Lubricated with high temperature Exxon POLYREX EM lubricant
  • Grounding provisions
  • Fully gasketed
  • Capacitor start designs
  • Standard 7/8" diameter shaft with keyway plus 3/4" deep hole drilled and tapped to 1/4-20 UNC in end of shaft to facilitate mounting of some fan blades.
Volts 208-230 Volts 460 Volts
F.L. Amps 4.4-4.2 F.L. Amps 2.1 F.L. Amps
S. F Amps   S. F Amps   S. F Amps
RPM 3600 Hertz 60
KW 1.12 Model # C143T34NB2E
Frame 143TZ Serv. Factor 1.0 Phase 3
Max Amb 40 Design B Code K
Insul Class B Protection NOT Therm.Prot.
Eff 100% 82.5 Eff 75%   PF 84
UL Yes CSA Yes Bearing OPE 6203
CC Number   CE No Bearing PE 6205
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 34 LB Enclosure TENV Lubrication POLYREX EM
Nameplate 004002 Mounting RIGID Rotation REV

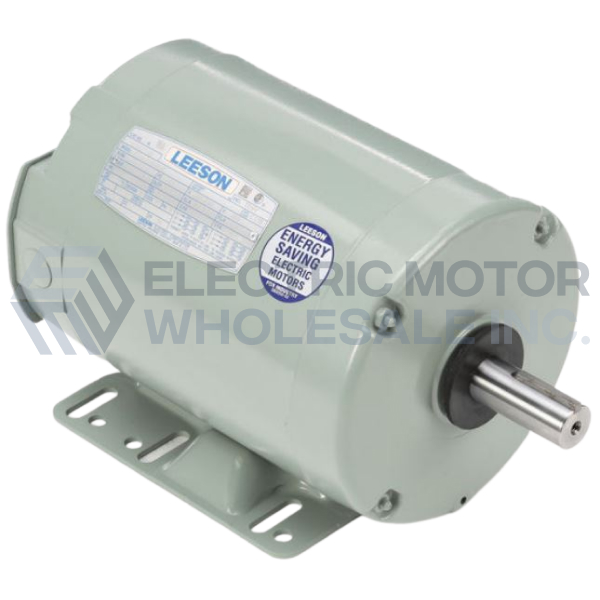

1.5HP LEESON 3450RPM 143TZ TENV 3PH MOTOR 120377
Click Image to Enlarge
Manufacturer Part Number: 120377.00
Stock # 120377
Price: $253.00
Compare At: $699.00
