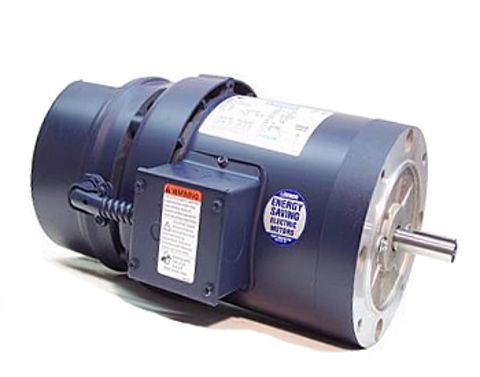

2HP LEESON 1740RPM 145TC TEFC 3PH BRAKE MOTOR 120332.00

2HP LEESON 1740RPM 145TC TEFC 3PH BRAKE MOTOR 120332.00

Picture is for reference only.

Part Number:

120332.00

Model/Spec Number:

C145T17FC12

Manufacturer:

Leeson Obsolete
120332.00 LEESON 2HP Three Phase Totally Enclosed Brake motor is designed for use with conveyors, packaging equipment, machine tools, hoists, elevators and door operators.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

52 lbs

Dimensions:

14 x 18 x 14 inches

HS Code:

8501.52.4000

Technical Details

Brand:

Leeson

Application:

Brakemotor

Output HP:

2

Output KW:

1.5

Output RPM:

1740

Frame Size NEMA:

145TC

Mount NEMA:

C Face No Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP54

Voltage:

230/460

Motor Drawing REF DASH-750

Connection Diagram
