1.5HP LEESON 3450RPM 143T DP 1PH MOTOR 120107.00

Catalog Number:  120107.00 Made in USA
Model Number:  C143C34DB1
Description:  1.5HP,3450RPM,143T,DP,1PH,60HZ
Ship Weight:  35 lbs.

This Leeson motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.

LEESON ODP Models: For use where water and dust exposure is moderate. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.

Features Include:

  • Made in USA
  • 7/8" shaft output diameter
  • Durable rolled steel frame
  • High-quality ball bearings
  • Easy-to-read nameplate
  • UL Recognized Component Listing and CSA approval
  • 1 year warranty
Volts 115 Volts 208-230 Volts
F.L. Amps 16.4 F.L. Amps 8.6-8.2 F.L. Amps
S. F Amps 18 S. F Amps 9.8-9 S. F Amps
RPM 3600 Hertz 60
HP 1.5 Duty CONTINUOUS TYPE CD
KW 1.119 Model # C143C34DB1F
Frame 143T Serv. Factor 1.15 Phase 1
Max Amb 40 Design L Code G
Insul Class B Protection NOT Therm.Prot.
Eff 100% 74 Eff 75%   PF 80
UL Yes CSA Yes Bearing OPE 6203
CC Number   CE No Bearing PE 6205
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 35 LB Enclosure DP Lubrication POLYREX EM
Nameplate 004003 Mounting RIGID Rotation SELECTIVE CCW

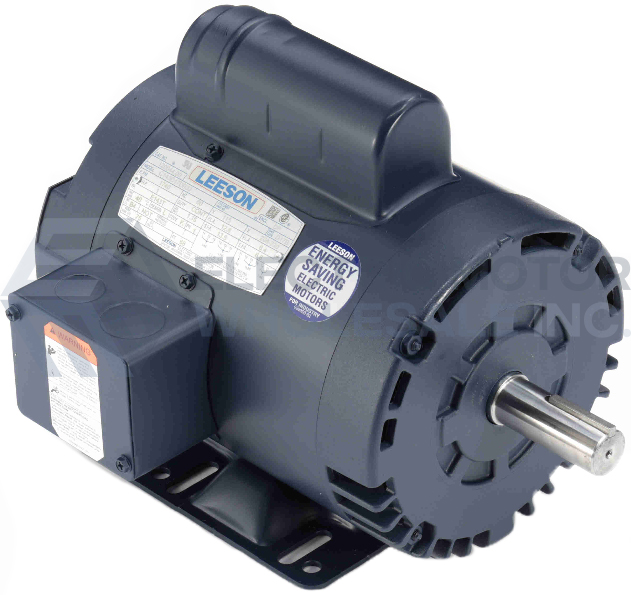

1.5HP LEESON 3450RPM 143T DP 1PH MOTOR 120107.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 120107.00
Stock # 120107
Price: $245.00
Compare At: $596.00
