120101.00 LEESON 1.5HP Single Phase General Purpose Motor C143C34FC1K

Electric Motors

Discontinued Electric Motors

Leeson Discontinued Motors

1.5HP LEESON 3450RPM 143TC TEFC 115/208-230V 1PH MOTOR 120101.00

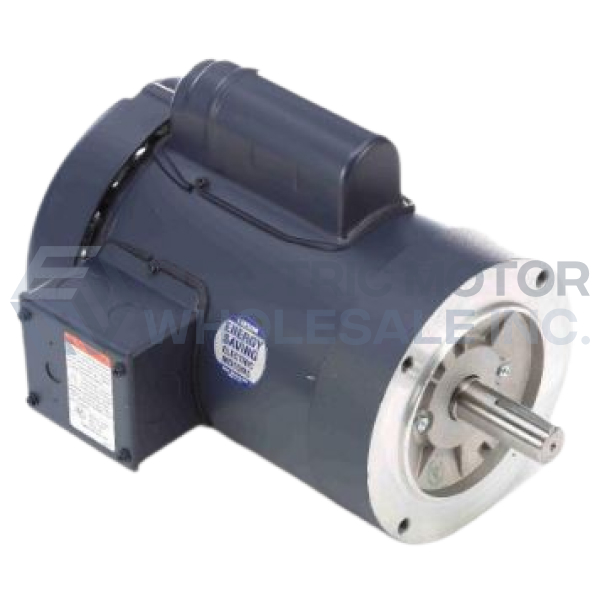

Picture is for reference only.

Part Number:

120101.00

Model/Spec Number:

C143C34FC1K

Manufacturer:

Leeson Obsolete

120101.00 LEESON 1.5HP Single Phase Electric Motor for use where water, dust and dirt exposure exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications.

Item Discontinued

Click below to request an agent review potential options.

Shipping Details

Weight:

39 lbs

Dimensions:

11 x 15 x 11 inches

HS Code:

8501.40.6040

UPC:

691720015056

Technical Details

Specifications

Application:	General Purpose
Output HP:	1.5
Output KW:	1.1
Output RPM:	3450
Frame NEMA:	143TC
Mount NEMA:	C-Face No Base
Enclosure NEMA:	TEFC
Enclosure IEC:	IP43
Voltage:	115/208-230
Frequency (Hz):	60

Documentation

Product Information Packet

Additional Information

LEESON Single Phase General Purpose Motor for use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for continuous outdoor use without proper shielding or for use with harsh chemicals.

FEATURES:
