2HP LEESON 1740RPM 145TC DP 115/208-230V 1PH MOTOR 120073.00

2HP LEESON 1740RPM 145TC DP 115/208-230V 1PH MOTOR 120073.00

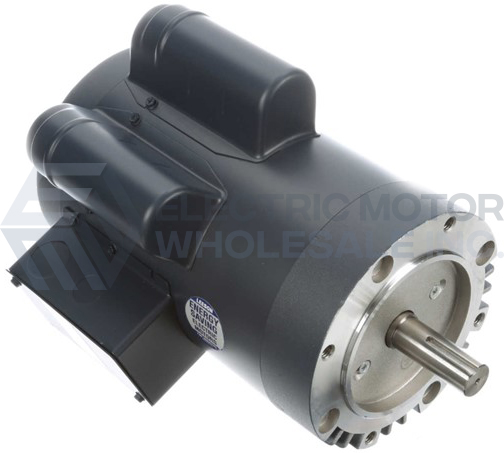

145TC CSCR LESS BASE.jpg

Part Number:

120073.00

Model/Spec Number:

C145K17DC4

Manufacturer:

Leeson Obsolete
120073.00 LEESON 2HP Single Phase Electric Motor for use where water and dust exposure is moderate. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

49 lbs

Dimensions:

14 x 24 x 14 inches

HS Code:

8501.40.6040

UPC:

691720015001

Technical Details

Application:

General Purpose

Output HP:

2

Output KW:

1.5

Output RPM:

1740

Frame NEMA:

145TC

Mount NEMA:

C-Face No Base

Enclosure NEMA:

DP

Enclosure IEC:

IP22

Voltage:

115/208-230

Frequency (Hz):

60

Product Information Packet

Obsolete-C145K17DC4L
