1HP LEESON 1800RPM 143T ODP 115/208-230V 1PH MOTOR 120044.00

Catalog Number:  120044.00 - FREE Ground Shipping in USA
Model Number:  C143C17DB3J
Description:  1HP,1740RPM,143T,DP,115/208-230V,1PH,60HZ,COMPRESSOR DUTY
Ship Weight:  41 lbs.

Compressor Duty Motors are designed for air compressor, pump, and fan and blower duty applications which require high breakdown torque and rugged mechanical construction.

Features Include:

  • Made in USA
  • 7/8" Shaft diameter
  • Double shielded ball bearings
  • Designed for belted loads
  • High efficient copper windings
  • High starting and breakdown torque
  • Dual rotation
  • Continuous duty
  • Thermally protected ratings
  • Durable rolled steel frame
  • Easy-to-read nameplate
  • UL Recognized Component Listing and CSA certified
Volts 115 Volts 208-230 Volts
F.L. Amps 12.8 F.L. Amps 6.4 F.L. Amps
S. F Amps 13.6 S. F Amps 6.8 S. F Amps
RPM 1800 Hertz 60
HP 1 Duty CONTINUOUS TYPE CD
KW .75 Model # C143C17DB3J
Frame E143T Serv. Factor 1.15 Phase 1
Max Amb 40 Design N Code K
Insul Class B Protection NOT Therm.Prot.
Eff 100% 75 Eff 75%   PF 68
UL Yes CSA Yes Bearing OPE 6203
CC Number   CE No Bearing PE 6205
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 41 LB Enclosure DP Lubrication POLYREX EM
Nameplate 004003 Mounting RIGID Rotation SELECTIVE CCW

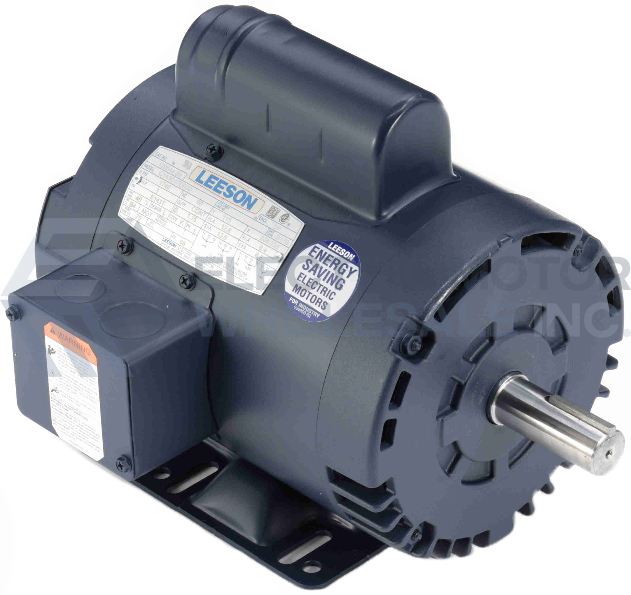

1HP LEESON 1800RPM 143T ODP 115/208-230V 1PH MOTOR 120044.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 120044.00
Stock # 120044
Price: $320.00
Compare At: $740.00
