2HP LEESON 1740RPM 145TC DP 3PH MOTOR G120035

LEESON 120035.00 has been superseded by G120035.00

Catalog Number:  120035.00
Description:  2HP,1740RPM,145TC,DP,3PH,60HZ
Ship Weight:  39 lbs.

DP Models: For use where water and dust exposure is moderate. Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.

Features Include:

  • Durable rolled steel frame
  • High-quality ball bearings
  • Easy-to-read nameplate
  • UL Recognized Component Listing and CSA approval.
  • Warranty – 12 months from date of first use or 18 months from date of manufacture, whichever comes first.
Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 6.4-6 F.L. Amps 3 F.L. Amps 5.4/2.7
S. F Amps 7-6.4 S. F Amps 3.2 S. F Amps 6.6/3.3
RPM 1800 Hertz 60/50
HP 2 Duty CONTINUOUS TYPE TD
KW 1.49 Model Number C145T17DC41 A
Frame 145TC Serv. Factor 1.15 Phase 3
Max Amb 40 Design C Code L
Insul Class B Protection NOT Therm.Prot.
Eff 100% 84 Eff 75%   PF 77.4
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE Yes Bearing PE 6205
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 39 LB Enclosure DP Lubrication POLYREX EM
Nameplate 993500 Mounting C FACE Rotation REV

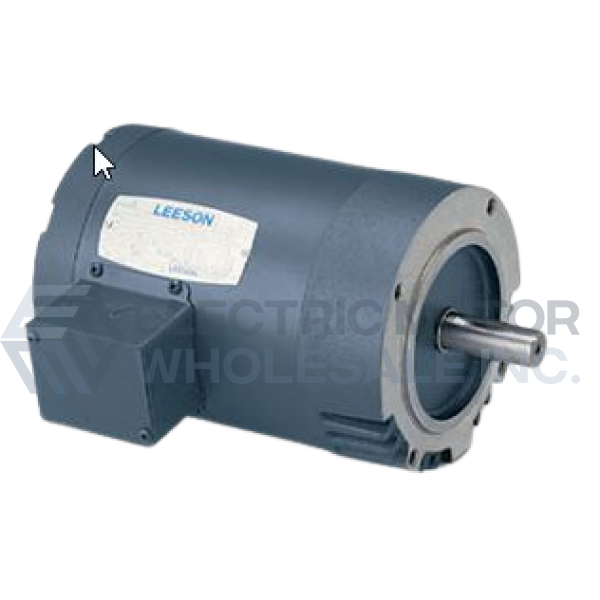

2HP LEESON 1740RPM 145TC DP 3PH MOTOR G120035
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: G120035.00
Stock # G120035
