1.5HP LEESON 1725RPM 145T TEFC 1PH MOTOR 120026.00

Catalog Number:  120026.00 Made in USA
Model Number:  C145K17FB3J
Description:  1.5HP,1725RPM,145T,TEFC,1PH,60HZ
Ship Weight:  41 lbs.

APPLICATIONS: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for outdoor use without proper shielding or for use with harsh chemicals.

FEATURES:

  • Made in USA
  • Durable rolled steel frame
  • 7/8" shaft output diameter
  • High-quality ball bearings
  • Capacitor Start/Capacitor Run
  • Easy-to-read nameplate
  • Combination 56 H base has mounting holes for NEMA 56, and has a standard NEMA 145T frame shaft of 7/8”” Dia.
  • UL Recognized Component Listing and CSA approval.
  • 1 year warranty
Volts 115 Volts 208-230 Volts
F.L. Amps 17.2 F.L. Amps 8.8-8.6 F.L. Amps
S. F Amps   S. F Amps   S. F Amps
RPM 1800 Hertz 60
HP 1 1/2 Duty CONTINUOUS TYPE KF
KW 1.12 Model Number C145K17FB3J
Frame 145T Serv. Factor 1.0 Phase 1
Max Amb 40 Design L Code J
Insul Class B Protection NOT Therm.Prot.
Eff 100% 79 Eff 75%   PF 73
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6205
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 41.5 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 993500 Mounting RIGID Rotation SELECTIVE CCW

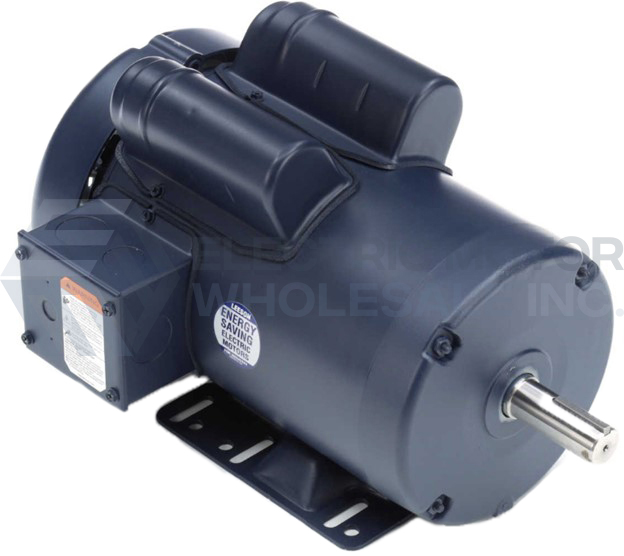

1.5HP LEESON 1725RPM 145T TEFC 1PH MOTOR 120026.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 120026.00
Stock # 120026
Price: $295.00
Compare At: $714.00
