1HP LEESON 1800RPM 143T ODP 115/208-230V 1PH MOTOR 120003.00

Catalog Number:  120003.00 - FREE Ground Shipping in USA
Model Number:  M143C17DB2K
Description:  1HP,1740RPM,143T,DP,115/208-230V,1PH,60HZ
Ship Weight:  36 lbs.

LEESON Compressor Duty Motors: Designed for air compressor, pump, and fan and blower duty applications which require high breakdown torque and rugged mechanical construction.

Features Include:

  • Made in USA
  • 7/8"  Keyed output shaft
  • Durable rolled steel construction
  • Meets or exceeds NEMA service factors
  • High starting and breakdown torque
  • Dual rotation
  • Continuous duty
  • Thermally protected ratings
  • Manual Overload Protection
  • Designed for belted loads
  • High efficient copper windings
  • High-quality double shielded ball bearings
  • Easy-to-read nameplate
  • UL Recognized Component Listing and CSA certified
  • Warranty: 12 months from the date of purchase or 18 months from the date of manufacture, whichever comes first
Volts 115 Volts 208-230 Volts
F.L. Amps 12.8 F.L. Amps 6.4 F.L. Amps
S. F Amps 13.6 S. F Amps 6.8 S. F Amps
RPM 1800 Hertz 60
HP 1 Duty CONTINUOUS TYPE CD
KW 0.75 Model # M143C17DB2K
Frame 143T Serv. Factor 1.15 Phase 1
Max Amb 40 Design N Code K
Insul Class B Protection MANUAL Therm.Prot. CEJ50CA
Eff 100% 75 Eff 75%   PF 68
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6205
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 36 LB Enclosure DP Lubrication POLYREX EM
Nameplate 993500 Mounting RIGID Rotation SELECTIVE CCW

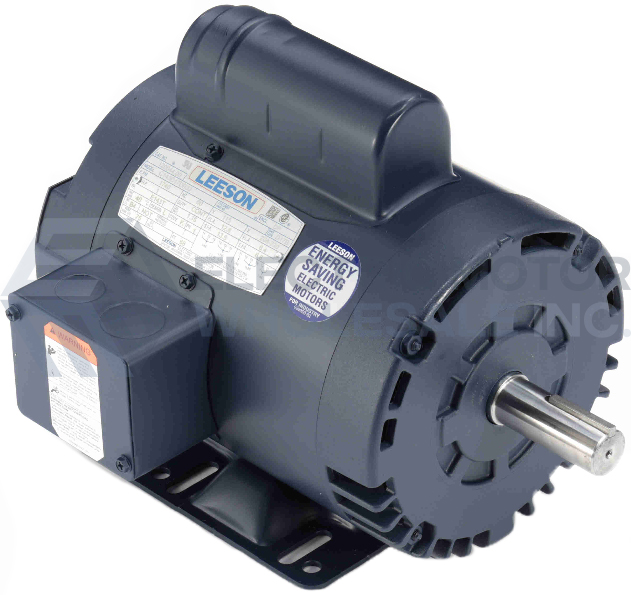

1HP LEESON 1800RPM 143T ODP 115/208-230V 1PH MOTOR 120003.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 120003.00
Stock # 120003
Price: $335.00
Compare At: $779.00
