3/4HP LEESON 1800RPM 56YZ TEFC 1PH MOTOR 117889.00

Catalog Number:  117889.00 - FREE Ground Shipping in Continental USA
Model Number:  117889.00
Description:  3/4HP,1800RPM,56YZ,TEFC,1PH,60HZ
Motor Type:  ---
Ship Weight:  31 lbs.

LEESON FEED-AUGER DRIVE MOTOR, Dust-tight, capacitor start motor with your choice of field proven electronc or protected mechanical starting switch--both eliminate damage caused when motor is over-speeded by obstructed auger. Ball-bearing, heavy duty industrial quality designs for high overload capacity. Side mounted conduit box. Flange mounts directly to drive assembly. Fully gasketed to keep out feed dust. Has screw driver slot in rear shaft. Continuous duty, with manual thermal overload protection.


  • Shaft is 5/8” Dia. X 1.97” ling with 3/16” keyway
  • Mechanical centrifugal starting switch with overspeed protection, others have electronic start switch
  • Manual overload protected
  • Stub shaft on ODE for manual jogging
  • Non USA Manufactured, MX

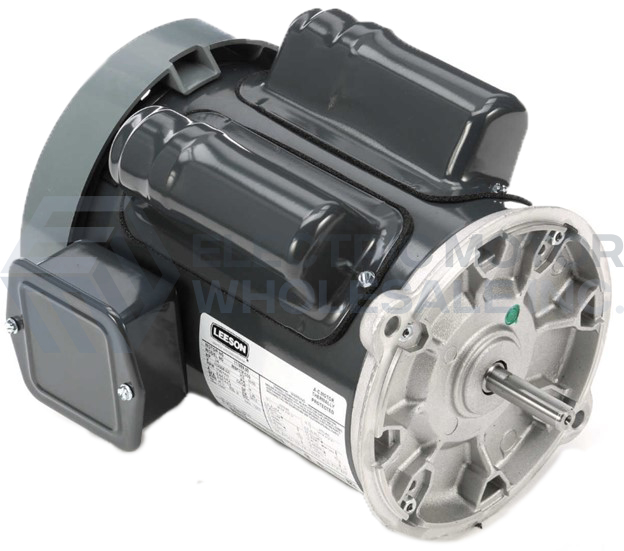

3/4HP LEESON 1800RPM 56YZ TEFC 1PH MOTOR 117889.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 117889.00
Stock # 117889
Price: $271.00
Compare At: $809.00
