1HP LEESON 1800RPM 56YZ TEFC 1PH MOTOR 117883.00

Catalog Number: 117883.00
Description:  1HP,1800RPM,56YZ,TEFC,1PH,60HZ
Ship Weight:  39 lbs.

LEESON FEED-AUGER DRIVE MOTOR, Dust-tight, capacitor start motor with your choice of field proven electronc or protected mechanical starting switch--both eliminate damage caused when motor is over-speeded by obstructed auger. Ball-bearing, heavy duty industrial quality designs for high overload capacity. Side mounted conduit box. Flange mounts directly to drive assembly. Fully gasketed to keep out feed dust. Has screw driver slot in rear shaft. Continuous duty, with manual thermal overload protection.


  • Steel frame
  • Dust tight
  • Shaft is 5/8” Dia. X 1.97” ling with 3/16” keyway
  • Choice of mechanical or solid state starting switch
  • Stub shaft on ODE for manual jogging
  • Mechanical switch has over-speed protection
  • Manual overload protected
  • Footnotes: S,MX,27,51,64

Note: Motors of 3/4 HP and less in the two adjacent charts have shaft of 1/2" diameter x 1 1/2" length, with flat; motors 1 HP and larger have 5/8" diameter x 1.97" length, with key.

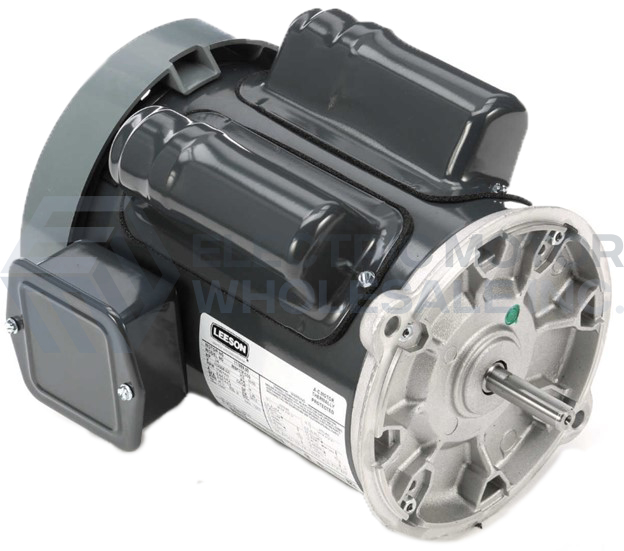

1HP LEESON 1800RPM 56YZ TEFC 1PH MOTOR 117883.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 117883.00
Stock # 117883
