1/2HP LEESON 1725RPM 56 3PH ECO-AG MOTOR 117772

Catalog Number: 117772.00
Model Number: C6T17TB163
Description:  1/2HP,1725RPM,56,TEFC,3PH,60/50HZ,PREMIUM
Ship Weight:  26 lbs.

APPLICATIONS: For use where exposure to water, dust and dirt exists. Ideally suited for use Farm / Ag equipment such as feeders, conveyors, fans, grain elevators, silo unloaders, and other demanding farm duty equipment.

FEATURES:

  • Made in USA
  • Premium efficient
  • Steel frame construction
  • Double sealed ball bearings
  • Shaft flingers
  • Normally closed thermostat protected
  • Weep holes provide condensation drains
  • Footnotes: S,US
Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 1.8-1.6 F.L. Amps .8 F.L. Amps 2/1
S. F Amps 2.1-2 S. F Amps 1 S. F Amps 2.2/1.1
RPM 1800 Hertz 60/50
HP 1/2 Duty CONTINUOUS TYPE TF
KW .37 Model # C6T17FB163A
Frame 56 Serv. Factor 1.25 Phase 3
Max Amb 40 Design B Code L
Insul Class F Protection NOT Therm.Prot. 9700K46
Eff 100% 80 Eff 75%   PF 73
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 26 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 993500 Mounting RIGID Rotation REV
Assembly NONE Shaft Dia. 5/8 IN Ext. Diag. 005010.20
1/2HP LEESON 1725RPM 56 3PH ECO-AG MOTOR 117772

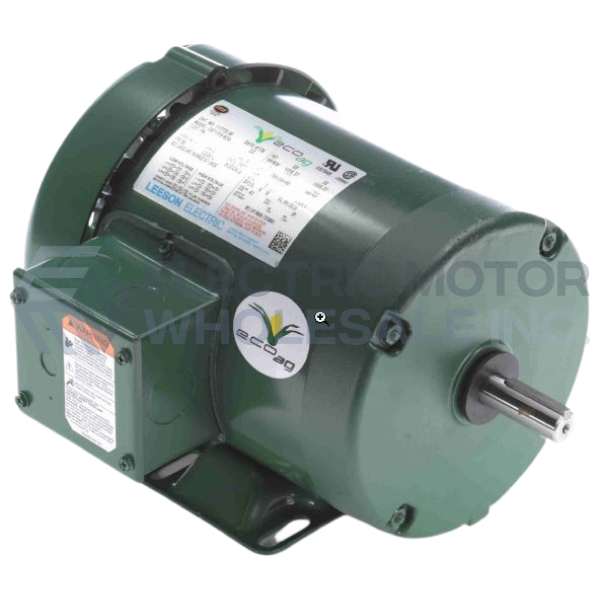

Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 117772.00
Stock # 117772
Price: $180.00
Compare At: $657.00
