3/4HP LEESON 3600RPM 56J TEFC 3PH MOTOR 116774.00

Catalog Number:  116774.00 - FREE Ground Shipping in USA
Model Number: C6T34WC14
Description:  3/4HP,3600RPM,56J,3PH,EPOXY WASHGUARD
Ship Weight:  23 lbs.

LEESON Three Phase White Duck Washguard Epoxy Jet Pump Motor is designed for demanding pump applications in wet, humid areas. Designed to meet the industrial washdown conditions that you may find in food processing plants, chemical processing, pharmaceutical plants, and the beverage and brewing industries.

  • Made in the USA
  • The original moisture-shedding "duck" motor
  • Durable rolled steel frame
  • USDA-approved, high-gloss, white epoxy finish
  • 5/8" Threaded output shaft
  • 303 stainless-steel shaft and moisture-resistant shaft system
  • Frame, base, endshields, rotor, and interior components are protected by enamel and polyester compounds
  • High temperature, moisture resistant IRIS® insulation system
  • Cast, oversized conduit box with tough, high-temperature nitrile gaskets and stainless-steel cover and hardware
  • Excellent for applications requiring a motor that is "tropicalized"
  • Double-sealed, oversized bearings
  • Stainless-steel or white polypropylene fan guard on all Washguard frames.
  • Stainless-steel, “full-fact” nameplate
  • Four condensate drains in each endshield
  • Meets IP55 enclosure protection
Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 2.5-2.4 F.L. Amps 1.2 F.L. Amps 2.2/1.1
S. F Amps 2.9-2.8 S. F Amps 1.4 S. F Amps 2.4/1.2
RPM 3600 Hertz 60/50
HP 3/4 Duty CONTINUOUS TYPE TF
KW 0.56 Model # C6T34WC14C
Frame 56J Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code J
Insul Class F Protection NOT Therm.Prot.
Eff 100% 75.5 Eff 75%   PF 78
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE Yes Bearing PE 6205
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 23 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 080904 Mounting C FACE Rotation REV

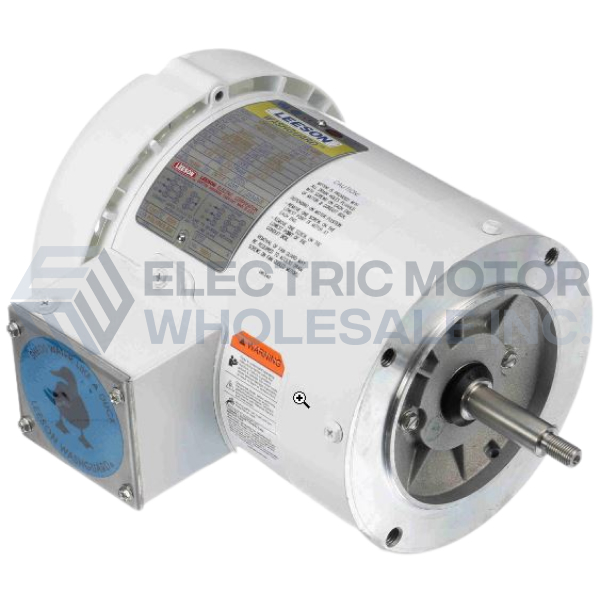

3/4HP LEESON 3600RPM 56J TEFC 3PH MOTOR 116774.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 116774.00
Stock # 116774
Price: $311.00
Compare At: $824.00
