1HP LEESON 1760RPM 56 DP 3PH ECOSAVER MOTOR E116752.00

Catalog Number:  E116752.00 - FREE Ground Shipping in USA
Model Number:  C6T17DB92 B
Description:  1HP,1760RPM,56,DP,3PH,60/50HZ,ECOSAVER
Ship Weight:  36 lbs.

LEESON ECOSAVER motor carries a three-year warranty in general purpose and inverter fed applications. These motors meet or exceed most utility rebate programs and the EPACT federally mandated efficiency levels. Drip proof enclosure designed for use where dust and water exposure is moderate.

FEATURES:

  • Made in USA
  • 5/8" Keyed output shaft
  • Durable steel frame
  • NEMA Premium efficient motor with 3 year warranty
  • Inverter-rated
  • Rated for 50 Hz operation
  • Class B insulation systems
  • Shielded ball bearings for direct coupled applications
  • UL recognized and CSA certified

APPLICATIONS: Ideally suited for use on pumps, compressors, blowers, fans, and other direct or belt-driven applications.

Volts 230   Volts 460   Volts 190/380
FL Amps 3.2   FL Amps 1.6   FL Amps 3.6/1.8
SF Amps 3.6   SF Amps 1.8   SF Amps 4.2/2.1
RPM 1800   Hertz 60/50
HP 1   Duty CONTINUOUS   Type TD
KW .75   SF 1.25   Phase 3
Frame 56   Design B   KVA Code N
Ambient 40   Protection NOT   Therm.Prot. 9700K46
Insulation Class F   Eff(75%)     PF 68.5
Eff(100%) 83.5   CSA Y   Bearing OPE 6203
UL Y-(LEESON UL REC)   CE Y   Bearing PE 6203
CC Number EXEMPT   Inverter Type     Speed Range 1.1 X BASE SPEED
LOad Type
Motor Wt. 35 LB   Enclosure DP   Lubrication POLYREX EM
Nameplate 10000418-001-001   Mounting RIGID   Rotation REV
Shaft Diam. 5/8 IN   Cust Part No.     Packaging B
      Winding T634342   Carton Label Individual Leeson ECOSaver
      Group 3   Iris
Paint GREEN - LEESON WATTSAVER   Hazardous Location NONE   Test Card 01

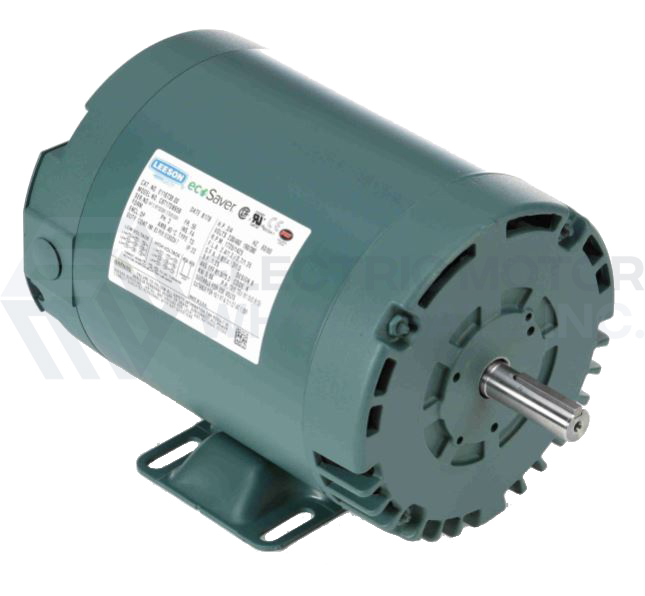

1HP LEESON 1760RPM 56 DP 3PH ECOSAVER MOTOR E116752.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: E116752.00
Stock # E116752
Price: $316.00
Compare At: $797.00
