2HP LEESON 1745RPM 56C DP 3PH WATTSAVER MOTOR 116742.00

2HP LEESON 1745RPM 56C DP 3PH WATTSAVER MOTOR 116742.00

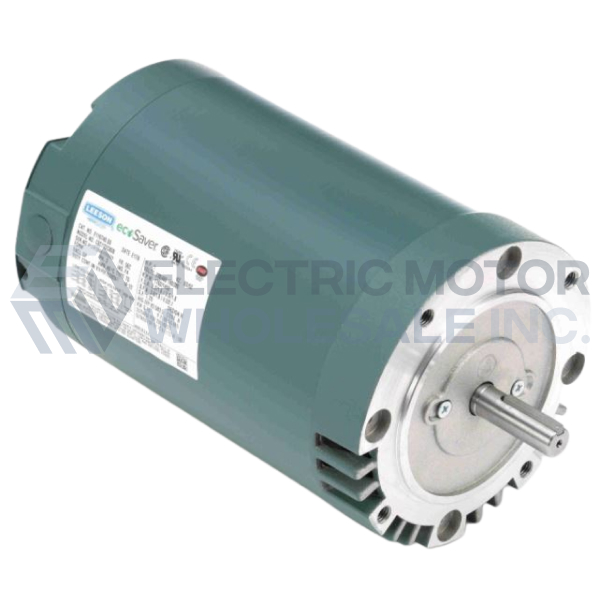

Picture is for reference only.

Part Number:

116742.00

Model/Spec Number:

C6T17DC82

Manufacturer:

Leeson Obsolete
116742.00 LEESON 2HP WATTSAVER motor carries a three-year warranty in general purpose and inverter fed applications. This motor meets or exceeds most utility rebate programs and the EPACT federally mandated efficiency levels.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

48 lbs

Dimensions:

12 x 22 x 12 inches

HS Code:

8501.52.4000

Technical Details

Brand:

Leeson

Application:

General Purpose

Output HP:

2

Output KW:

1.5

Output RPM:

1745

Frame Size NEMA:

56C

Mount NEMA:

C Face No Base

Enclosure NEMA:

DP

Enclosure IEC:

IP22

Voltage:

208-230/460

Motor Drawing

Connection Diagram
