3/4HP LEESON 1725RPM 56 TEFC 3PH WATTSAVER MOTOR 116739.00
3/4HP LEESON 1725RPM 56 TEFC 3PH WATTSAVER MOTOR 116739.00

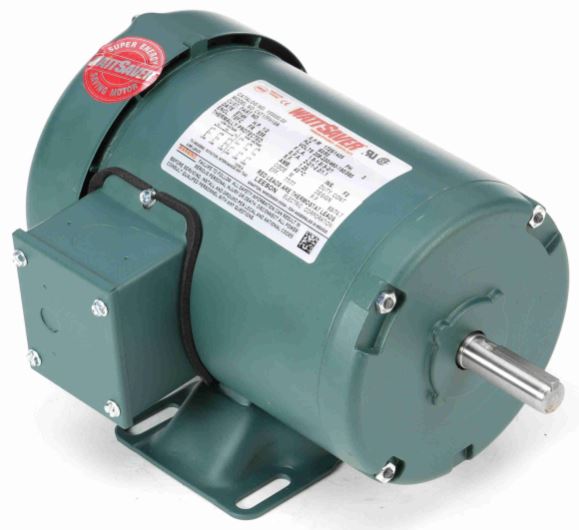

Picture is for reference only.
Part Number:
116739.00Model/Spec Number:
C6T17FB152Manufacturer:
Leeson ObsoleteClick below to request an agent review potential options.
Shipping Details
Weight:
33 lbsDimensions:
12 x 18 x 12 inchesHS Code:
8501.51.4000UPC:
691720347997Technical Details
Specifications
Brand: | Leeson |
Application: | General Purpose |
Output HP: | 3/4 |
Output KW: | 0.55 |
Output RPM: | 1744/1440 |
Frame Size NEMA: | 56 |
Mount NEMA: | With Base |
Enclosure NEMA: | TEFC |
Enclosure IEC: | IP43 |
Voltage: | 208-230/460//190/380 |
Documentation
Additional Information
LEESON WATTSAVER motor carries a three-year warranty in general purpose and inverter fed applications. These motors meet or exceed most utility rebate programs and the EPACT federally mandated efficiency levels. The efficiency ratings have been verified to IEEE 112B test standards by LEESON's NVLAP-Certified lab.
FEATURES:
- 5/8" Keyed output shaft
- 1.15 Service Factor
- Class F insulation
- Meets or exceeds NEMA Premium® efficiencies
- Class F insulation
- UL Recognized, CSA Certified, CEMark
- NEMA Premium efficiency with 3 year warranty
