3HP LEESON 3450RPM 56HC DP 1PH MOTOR 116707.00

LEESON 116707.00 has been superseded by E116707.00

Catalog Number:  116707.00 Made in USA
Model Number:  M6C34DK5A
Description:  3HP,3450RPM,56HC,DP,1PH,60HZ
Ship Weight:  41 lbs.
Volts 230 Volts   Volts
F.L. Amps 15 F.L. Amps   F.L. Amps
S. F Amps None S. F Amps   S. F Amps
RPM 3600 Hertz 60
HP 3 Duty CONTINUOUS TYPE CD
KW 2.24 Model # M6C34DK5A
Frame 56HC Serv. Factor 1.0 Phase 1
Max Amb 40 Design L Code G
Insul Class F Protection MANUAL Therm.Prot. CEJ31CA
Eff 100%   Eff 75%   PF
UL Yes CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6205
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 41 LB Enclosure DP Lubrication POLYREX EM
Nameplate 004001 Mounting RIGID C Rotation SELECTIVE CCW

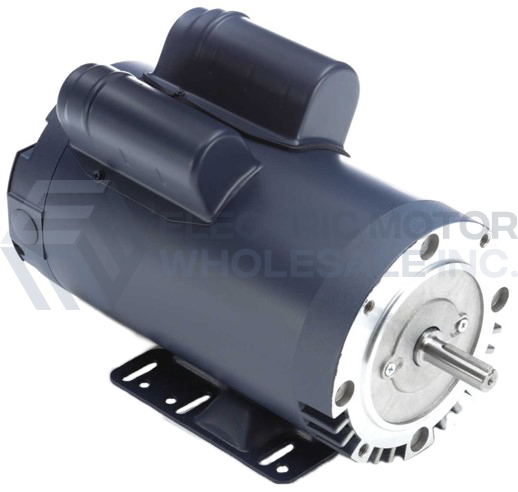

3HP LEESON 3450RPM 56HC DP 1PH MOTOR 116707.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 116707.00
Stock # 116707
