3HP LEESON 3450RPM 56H DP 1PH MOTOR 116706.00

Catalog Number:  116706.00 Made in USA
Model Number:  M6C34DB75A
Description:  3HP,3450RPM,56H,DP,1PH,60HZ
Ship Weight:  39 lbs.

LEESON ODP Models: Specially suited for hot or cold pressure washer applications and other single phase installations requiring minimum starting and running amperages. Capacitor start, capacitor run construction for reduced amperage.

Features Include:

  • Made in USA
  • Durable rolled steel frame
  • 5/8" shaft output diameter
  • Manual reset overload protection
  • Double shielded ball bearings
  • Dynamically balanced rotors
  • Windings dipped in heavy duty varnish system
  • Capacitor start / capacitor run designs to reduce amp draw
  • Combination 56H base has mounting holes for NEMA 56 and NEMA 143-5T and a standard NEMA 56 shaft of 5/8”
  • High service factor
  • 1 year warranty
Volts 230 Volts   Volts
F.L. Amps 15 F.L. Amps   F.L. Amps
S. F Amps None S. F Amps   S. F Amps
RPM 3600 Hertz 60
HP 3 Duty CONTINUOUS TYPE CD
KW 2.20 Model # M6C34DB75A
Frame 56H Serv. Factor 1.0 Phase 1
Max Amb 40 Design L Code G
Insul Class F Protection MANUAL Therm.Prot. CEJ31CA
Eff 100%   Eff 75%   PF
UL Yes CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6205
Load Type   Inverter Type NONE Speed Range NONE
Motor Wt. 39 LB Enclosure DP Lubrication POLYREX EM
Nameplate 004001 Mounting RIGID Rotation SELECTIVE CCW

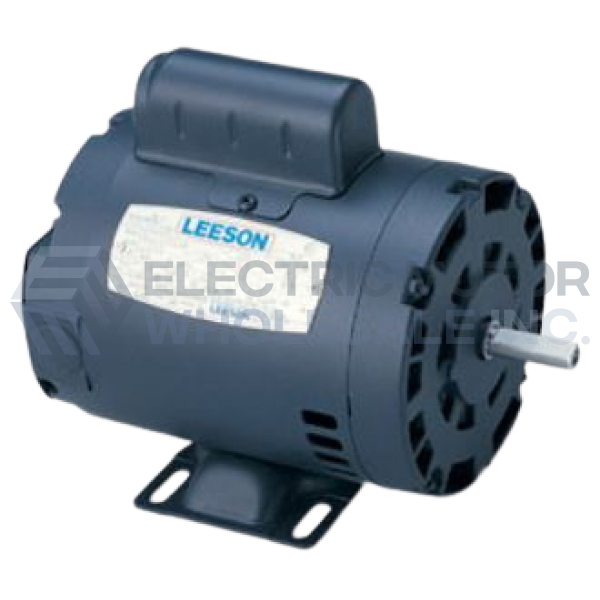

3HP LEESON 3450RPM 56H DP 1PH MOTOR 116706.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 116706.00
Stock # 116706
Price: $364.00
Compare At: $880.00
