1HP LEESON 1725RPM 56C TEFC 3PH EPOXY MOTOR 116646.00

LEESON 116646.00 has been superseded by 119468.00

Catalog Number:  116646.00
Model Number:  C6T17WC25C
Description:  1HP,1725RPM,56C,TEFC,3PH,60HZ,EPOXY WASHGUARD
Ship Weight:  28 lbs.
Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 3.8 F.L. Amps 1.9 F.L. Amps 3.8/1.9
S. F Amps 4.2 S. F Amps 2.1 S. F Amps 4/2
RPM 1800 Hertz 60/50
HP 1 Duty CONTINUOUS TYPE TF
KW 0.75 Model # C6T17WC25C
Frame 56C Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code J
Insul Class F Protection NOT Therm.Prot.
Eff 100% 77 Eff 75%   PF 64
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE Yes Bearing PE 6205
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 28 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 080904 Mounting ROUND Rotation REV

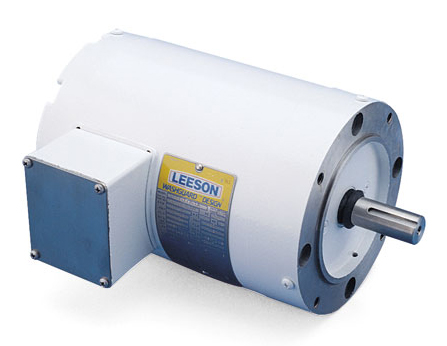

1HP LEESON 1725RPM 56C TEFC 3PH EPOXY MOTOR 116646.00
Click Image to Enlarge
Picture is for quick reference only.
Manufacturer Part Number: 116646.00
Stock # 116646
