1/2HP LEESON 3450RPM 56C TENV 3PH MOTOR 116643

LEESON Catalog Number:  116643.00
Description:  1/2HP,3450RPM,56C,TENV,3PH,60HZ,WASHGUARD
Ship Weight:  22 lbs.

LEESON WASHGUARD WHITE EPOXY Three Phase C-Face Motors are designed for superior extended service in severe environments. Typical applications include food processing areas requiring frequent sanitation procedures using high pressure cleaning with concentrated caustic solutions, areas of high humidity and in chemical environments.

NOTE: This motor is totally enclosed, non ventilated.

  • LEESON'S original moisture-shedding "duck" motor
  • USDA-approved white epoxy finish
  • Stainless steel shaft, conduit box cover, nameplate, fan guard
  • Special gaskets, slingers and seals
  • Four endshield drains
  • IRIS insulation system
  • Moisture-resistant interior components
  • Meets IP55 enclosure protection
  • Three phase motors are suitable for use on VFDs
  • 1000:1 ratio for constant or variable torque at 1:0 SF

Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 1.7-1.6 F.L. Amps .8 F.L. Amps 1.4/.7
S. F Amps 1.8-1.7 S. F Amps .85 S. F Amps 1.5/.75
RPM 3600 Hertz 60/50
HP 1/2 Duty CONTINUOUS TYPE TN
KW 0.37 Model # C6T34VC17 B
Frame 56C Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code M
Insul Class F Protection NOT Therm.Prot.
Eff 100% 82.5 Eff 75%   PF 79
UL Yes CSA Yes Bearing OPE 6203
CC Number EXEMPT CE Yes Bearing PE 6205
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 22 LB Enclosure TENV Lubrication POLYREX EM
Nameplate 080904 Mounting C FACE Rotation REV

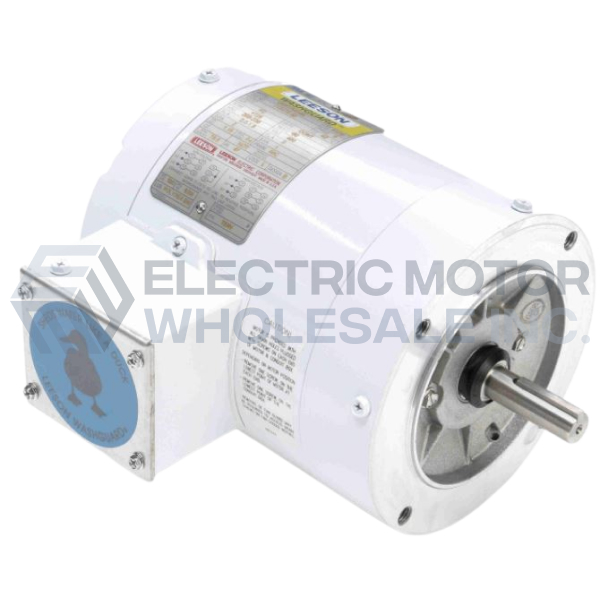

1/2HP LEESON 3450RPM 56C TENV 3PH MOTOR 116643
Click Image to Enlarge
Manufacturer Part Number: 116643.00
Stock # 116643
Price: $297.00
Compare At: $790.00
