1/3HP LEESON 1800RPM 56C TEFC 3PH MOTOR 116642.00

Catalog Number:  116642.00 - FREE Ground Shipping in USA
Model Number:  C6T17WC23
Description:  1/3HP,1800RPM,56C,TEFC,3PH,EPOXY WASHGUARD
Ship Weight:  19 lbs.

LEESON Three Phase White Duck Washguard Epoxy Motor is designed for enhanced performance in wet, humid areas. Designed to meet the demanding washdown conditions that you may find in food processing plants, chemical processing, pharmaceutical plants, and the beverage and brewing industries.

  • Made in the USA
  • The original moisture-shedding "duck" motor
  • Durable rolled steel frame
  • C-Face mounting provisions less base
  • USDA-approved, high-gloss, white epoxy finish
  • 5/8" Keyed output shaft
  • 303 stainless-steel shaft and moisture-resistant shaft system
  • Frame, base, endshields, rotor, and interior components are protected by enamel and polyester compounds
  • High temperature, moisture resistant IRIS® insulation system
  • Cast, oversized conduit box with tough, high-temperature nitrile gaskets and stainless-steel cover and hardware
  • Excellent for applications requiring a motor that is "tropicalized"
  • Double-sealed, oversized bearings
  • Stainless-steel or white polypropylene fan guard on all Washguard frames.
  • Stainless-steel, “full-fact” nameplate
  • Four condensate drains in each endshield
  • Meets IP55 enclosure protection
Volts 208-230 Volts 460 Volts 190/380
F.L. Amps 1.7 F.L. Amps .85 F.L. Amps 1.6/.8
S. F Amps 1.8 S. F Amps .9 S. F Amps 1.7/.85
RPM 1800 Hertz 60/50
HP 1/3 Duty CONTINUOUS TYPE TF
KW 0.25 Model # C6T17WC23C
Frame 56C Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code L
Insul Class F Protection NOT Therm.Prot.
Eff 100% 68 Eff 75%   PF 54
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE Yes Bearing PE 6205
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 19 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 080904 Mounting ROUND Rotation REV

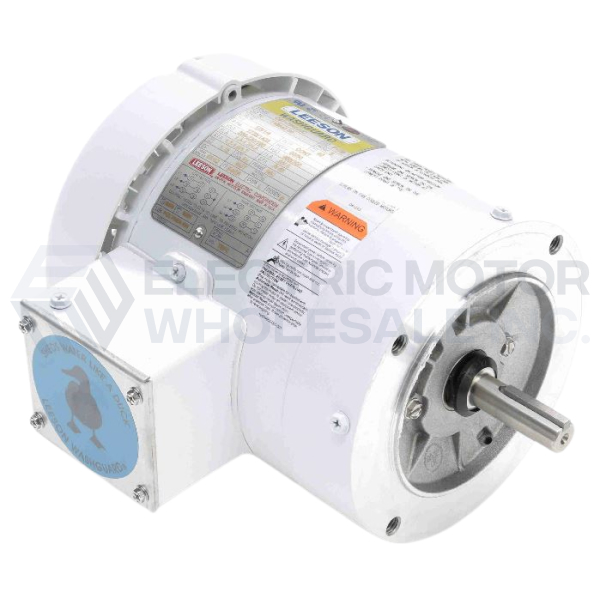

1/3HP LEESON 1800RPM 56C TEFC 3PH MOTOR 116642.00
Click Image to Enlarge
Image is for quick reference only
Manufacturer Part Number: 116642.00
Stock # 116642
Price: $296.00
Compare At: $787.00
