2HP LEESON 1740RPM 56H DP 1PH MOTOR 116601.00

Catalog Number:  116601.00
Model Number:  A6K17DR42 C
Description:  2HP,1740RPM,56H,DP,1PH,60HZ
Ship Weight:  48 lbs.

APPLICATIONS: Industrial quality, resilient (cradle) mounted, capacitor start-type, ball bearing motors for fan and blower service. Moderate starting torque electrical design to reduce stress on fan blades during start-up. Capacitor-type design has higher energy efficiency rating than split phase, single phase fan and blower motors. Suitable for belt-driven fans or fan-or-shaft applications. Self-ventilated design, may be mounted outside of the fan's airflow.


  • Made in USA
  • 5/8" shaft output diameter
  • Drip-proof and totally enclosed designs
  • Industrial quality, resilient (cradle) mounted
  • Capacitor start-type
  • Ball bearing designs
  • Moderate starting torque to reduce machinery stresses
  • Suitable for belt-driven fans or fan-on-shaft applications
Volts 277 Volts   Volts
F.L. Amps 8.7 F.L. Amps   F.L. Amps
S. F Amps 9.5 S. F Amps   S. F Amps
RPM 1800 Hertz 60
KW 1.49 Model # A6K17DR42C
Frame 56H Serv. Factor 1.15 Phase 1
Max Amb 40 Design L Code H
Insul Class F Protection AUTOMATIC Therm.Prot. CEJ36CV
Eff 100% 80 Eff 75%   PF 79
UL Yes CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 48 LB Enclosure DP Lubrication POLYREX EM
Nameplate 004001 Mounting RESIL Rotation SELECTIVE CCW

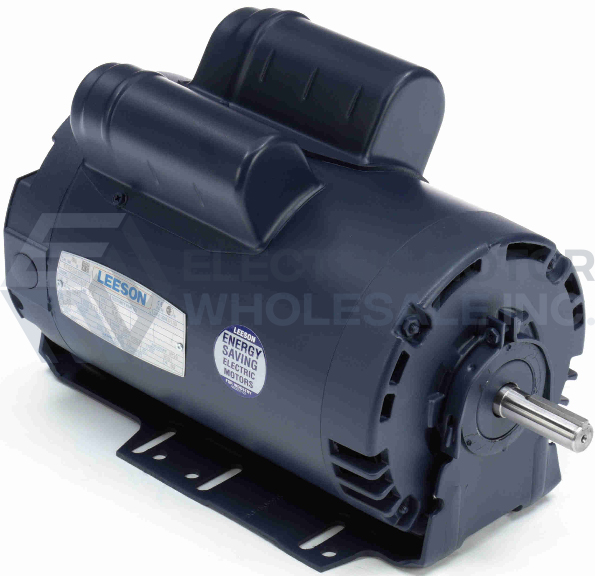

2HP LEESON 1740RPM 56H DP 1PH MOTOR 116601.00
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: 116601.00
Stock # 116601
Price: $403.00
Compare At: $1,016.00
