3HP LEESON 3450RPM 56C TEFC 3PH WASHDOWN MOTOR 115976.00

3HP LEESON 3450RPM 56C TEFC 3PH WASHDOWN MOTOR 115976.00

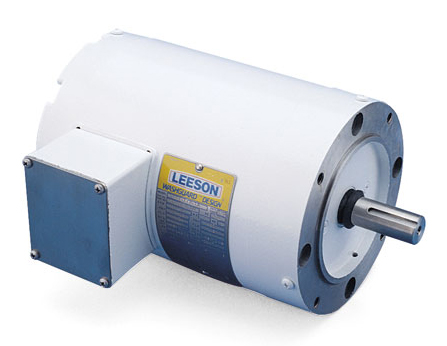

Picture is for reference only.

Part Number:

115976.00

Model/Spec Number:

C6T34WC7

Manufacturer:

Leeson Obsolete
115976.00 LEESON 3HP Three Phase Washguard Motors are designed for superior extended service in severe environments. Typical applications include food processing areas requiring frequent sanitation procedures using high pressure cleaning with concentrated caustic solutions, areas of high humidity and in chemical environments.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

42 lbs

Dimensions:

12 x 20 x 12 inches

HS Code:

8501.52.4000

Technical Details

Brand:

Leeson

Application:

Washdown Epoxy

Output HP:

3

Output KW:

2.2

Output RPM:

3450

Frame Size NEMA:

56C

Mount NEMA:

C Face No Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP55

Voltage:

230/460

Motor Drawing REF DASH-700

Connection Diagram
