2HP LEESON 3450RPM 56HC TEFC 1PH MOTOR 115878.00

Catalog Number:  115878.00 Made in USA
Model Number:  P6C34FK79F
Description:  2HP,3450RPM,56HC,TEFC,1PH,60HZ
Ship Weight:  46 lbs.

This Leeson motor is a Build To Order product and factory lead times are approximately 3-8 weeks after receipt of order. For exact lead times or other interchangeable products please contact our sales team for particulars.

APPLICATIONS: For use where exposure is limited to splashes of water, dust and/or where mild corrosives exist. Ideally, suited for use on pumps, compressors, blowers, fans, conveyors, machine tools and other direct or belt-driven applications. Not for continuous outdoor use without proper shielding or for use with harsh chemicals.

FEATURES:

  • Made in USA
  • Durable rolled steel frame
  • 5/8" shaft output diameter
  • Manual overload protection
  • High-quality ball bearings
  • Capacitor start
  • Easy-to-read nameplate
  • Some 56 frame motors have a 56, 56H, 143T and 145T combination base with 12 mounting holes for flexible installation
  • UL Recognized Component Listing and CSA approval
  • 1 year warranty
Volts 115 Volts 208-230 Volts
F.L. Amps 20 F.L. Amps 11.4-10 F.L. Amps
S. F Amps   S. F Amps   S. F Amps
RPM 3600 Hertz 60
HP 2 Duty CONTINUOUS TYPE CF
KW 1.49 Model Number P6C34FK79 F
Frame 56HC Serv. Factor 1.0 Phase 1
Max Amb 40 Design L Code J
Insul Class F Protection MANUAL Therm.Prot. BRJ42DA
Eff 100% 73 Eff 75%   PF 87
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE
Motor Wt. 46 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 993500 Mounting RIGID C Rotation SELECTIVE CCW

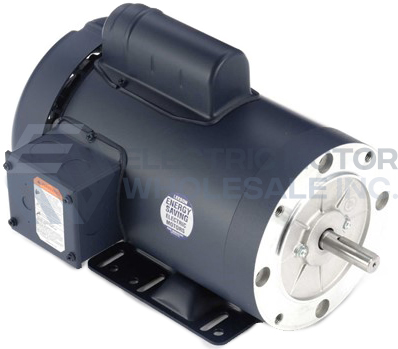

2HP LEESON 3450RPM 56HC TEFC 1PH MOTOR 115878.00
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: 115878.00
Stock # 115878
Price: $386.00
Compare At: $934.00
